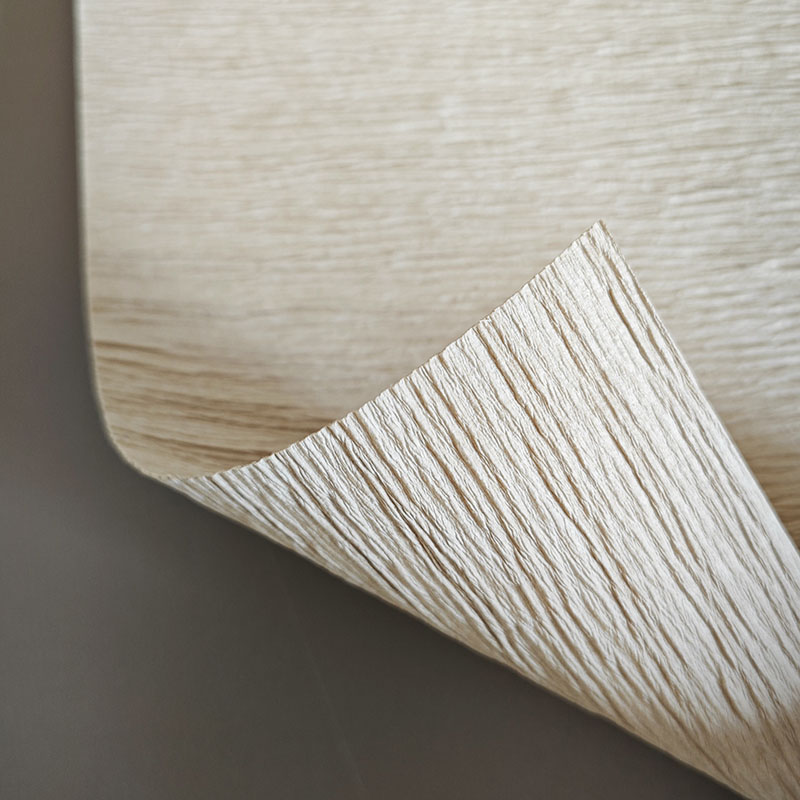

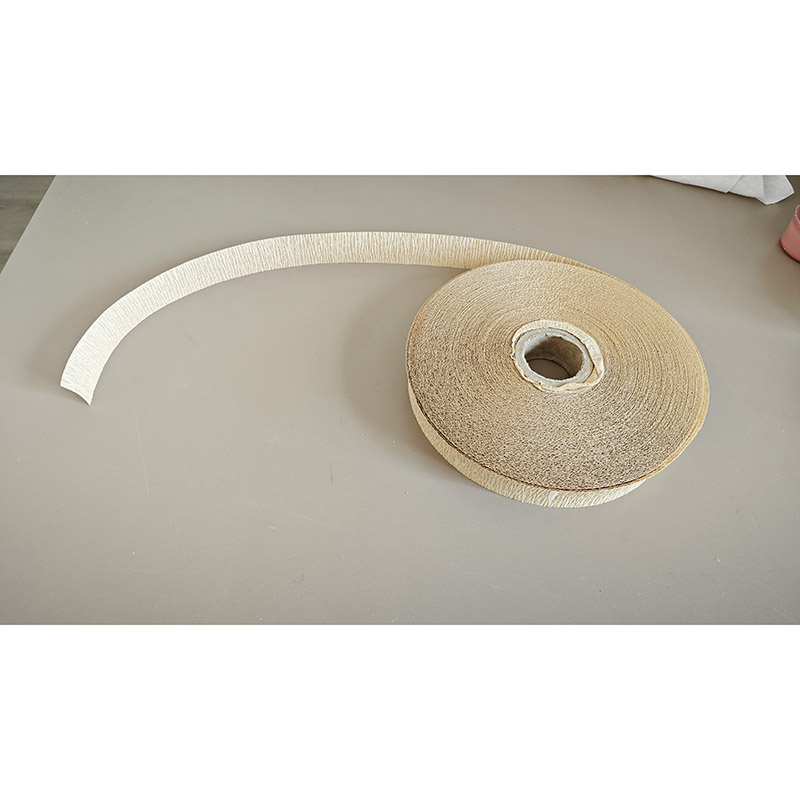

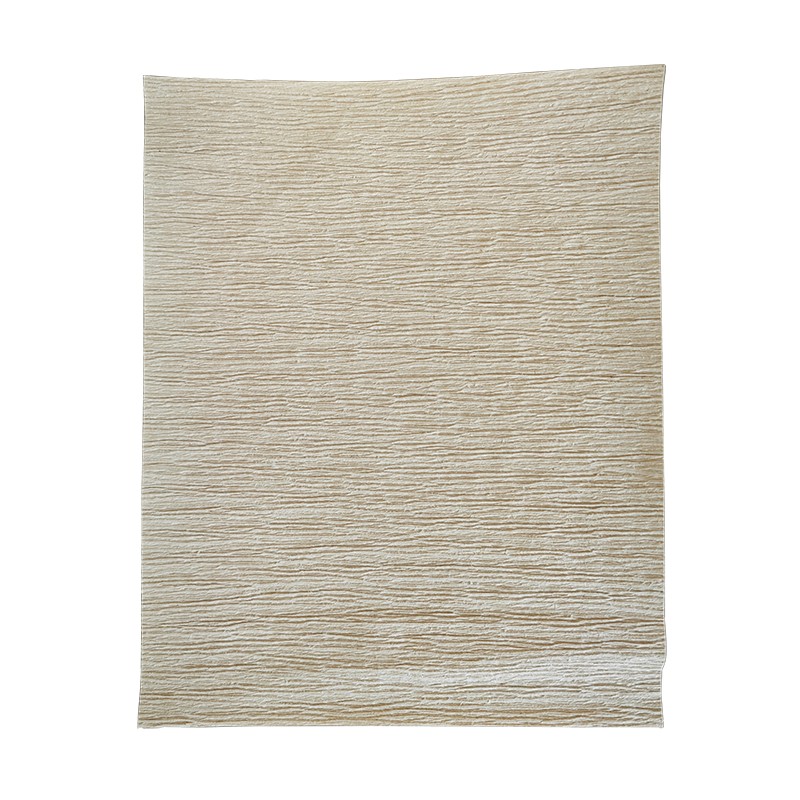

Hanyao supply electrical Insulation crepe paper world wide in bulk quantity.It is made from kraft paper, which is made from 100% wood pulp. Crepe paper has excellent stretch ability and anti abrasion ability. In addition,the uneven surface has greatly reduce the working temperature and extend the life span of a transformer. Crepe paper is one of Hanyao’s hottest selling products, if you are interested please contact us and we will provide you with a good price.
| Number | Property | Unit | Requirement | ||
| 1 | Norminal thickness | mm | 0.38 | 0.46 | 0.8 |
| 2 | Thickness tolerance | mm | ±0.05 | ±0.05 | ±0.10 |
| 3 | Gram per SQM | g/m2 | ≥110 | ≥180 | ≥245 |
| 4 | Elongation | % | ≥120 | ||
| 5 | Tensile strength | Nm/g | ≥50 | ≥50 | ≥50 |
| 6 | Moisture content | % | ≤8 | ||
| 7 | Ash content | % | ≤0.6 | ||
| 8 | Conductivity of water extract | mS/m | ≤6 | ||
| 9 | PH value of water extract | - | 6~8 | ||
| 10 | Electrical stength in oil | KV/mm | ≥10 | ≥10 | ≥12 |
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Electrical Insulation crepe paper is A class insulation material which is able to withstand temperature upto 105℃.
2.It has high purity and good oil absorption.
3.The uneven surface and extensibility allow it to insulate irregular shapes or surfaces where a normal flat insulation paper can not.
4. It is used to cover magnetic wires in power, distribution and instrumental transformers
