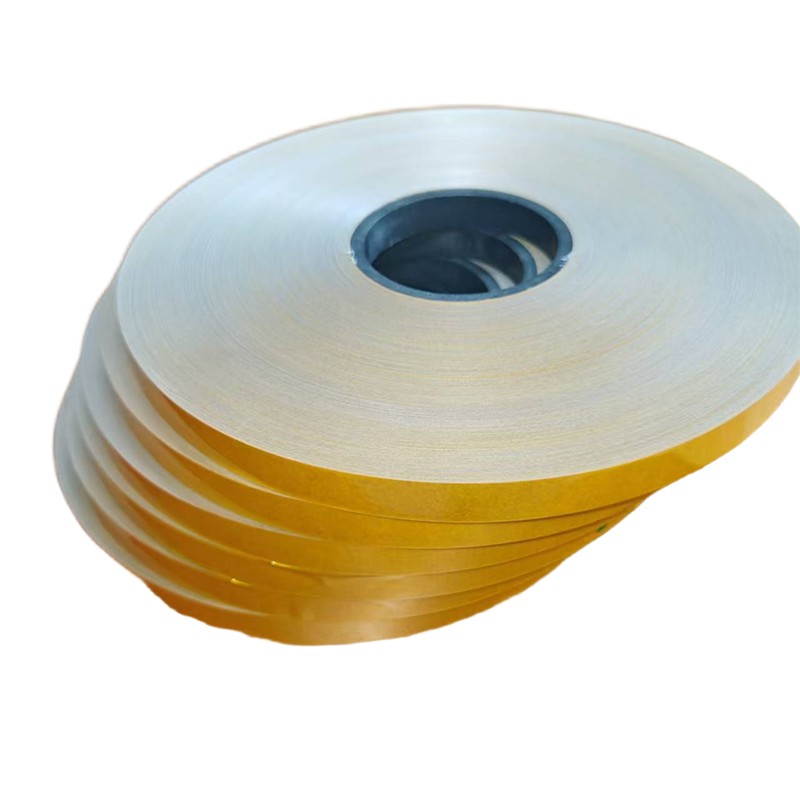

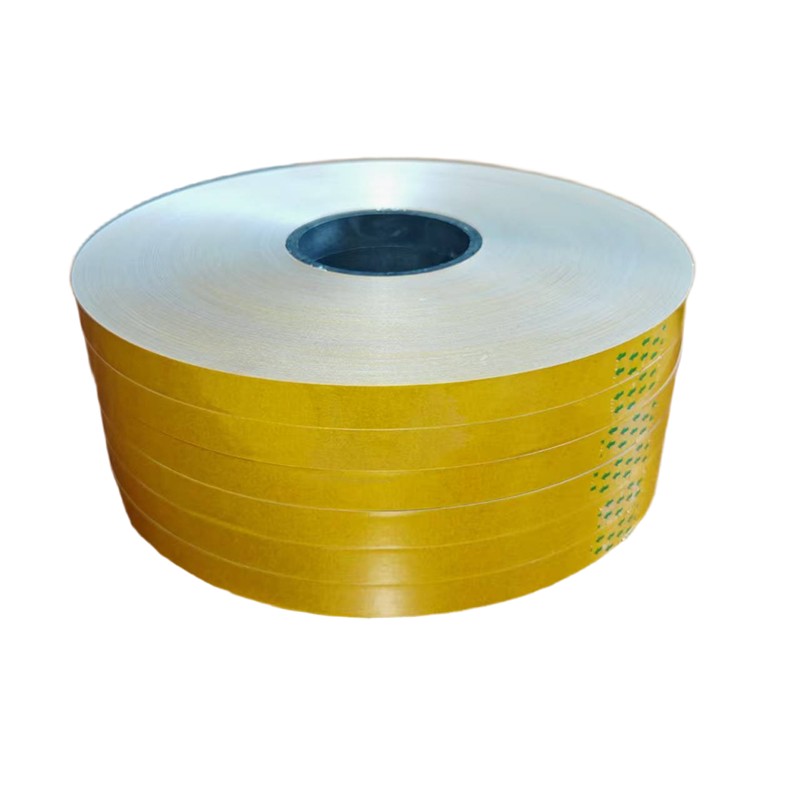

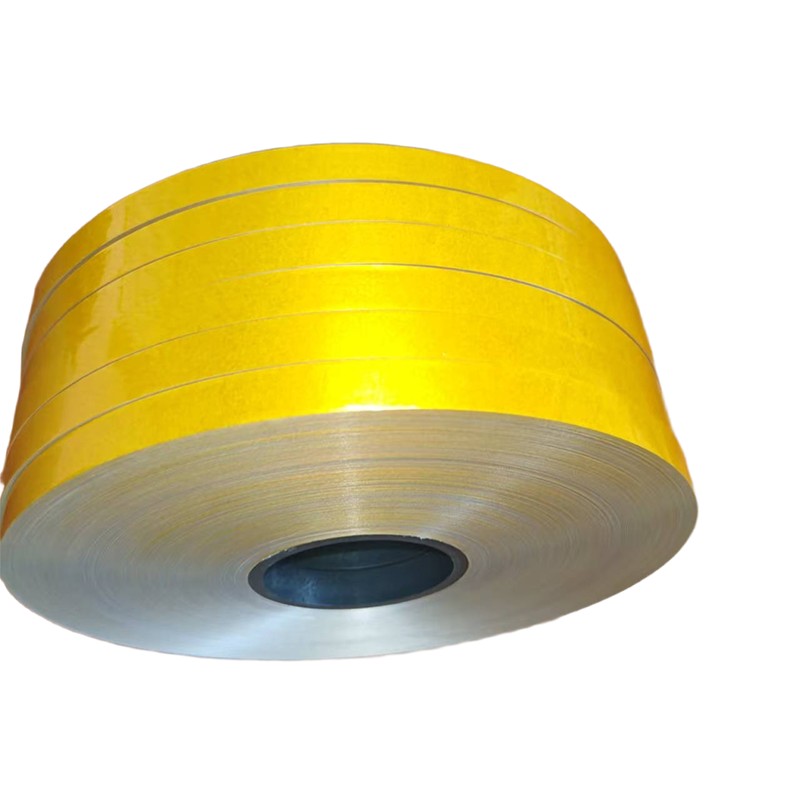

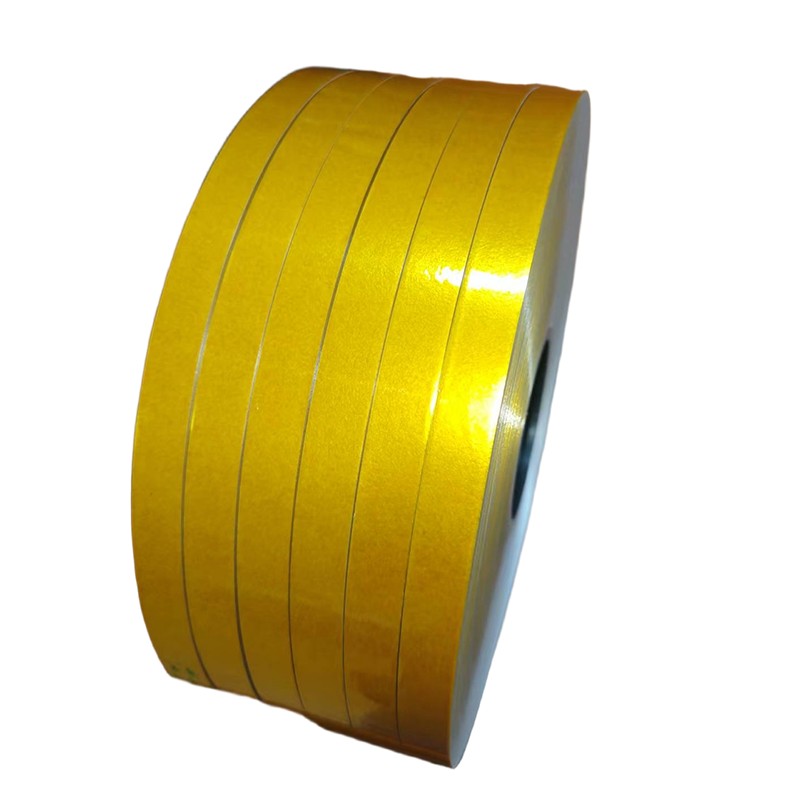

Polyimide film mica tape is a composite industrial tape consisting of three parts.It is a type of wrapped insulation material used for the insulation of coils in high-voltage motors and generators. Its structure is similar to that of polyester mica tape, but the key difference is that the reinforcing material is replaced by polyimide film instead of polyester film.Polyimide film is one of the best-performing organic films in the world today, with a long-term operating temperature exceeding 220°C. This allows polyimide mica tape with low adhesive powder content to achieve insulation levels of Class C (220°C) or Class H (180°C), far exceeding the Class F (155°C) insulation level of polyester tape.Polyimide film itself also has very high dielectric strength and insulation resistance. The combination of the two results in extremely reliable electrical properties. Polyimide film has extremely high tensile strength, approximately twice that of polyester film.
| No. | Item | Unit | Sizes | ||
| 1 | Thickness | mm | 0.07±0.01 | 0.08±0.01 | 0.09±0.01 |
| 2 | Volatile content | % | ≤1.0 | ≤1.0 | ≤1.0 |
| 3 | Adhesive content | % | ≤10.0 | ≤10.0 | ≤10.0 |
| 4 | Adhesive weight per sqm | g/m2 | 5±2 | 5±2 | 7±3 |
| 5 | Mica weight per sqm | g/m2 | 60±5 | 70±5 | 80±7 |
| 6 | Polyimide film weight per sqm | g/m2 | 42±5 | 49±5 | 42±5 |
| 7 | Breakdown strength | kV/mm | ≥45 | ≥45 | ≥45 |
| 8 | Tensile strength | N/10mm | ≥35 | ≥35 | ≥35 |
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.It has extremely high heat resistance, reaching Class C (220℃) or Class H (180℃) insulation levels.
2.It has excellent electrical insulation properties, outstanding mechanical strength, excellent chemical stability, and radiation resistance.
3.It has excellent corona resistance.
4.Polyimide low-adhesion mica tape, due to its ultra-high heat resistance and reliability, is mainly used in applications with extreme requirements for insulation systems, and is the preferred insulation material for high-end motors and special motors.
