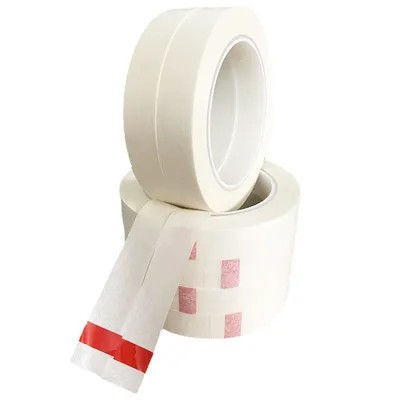

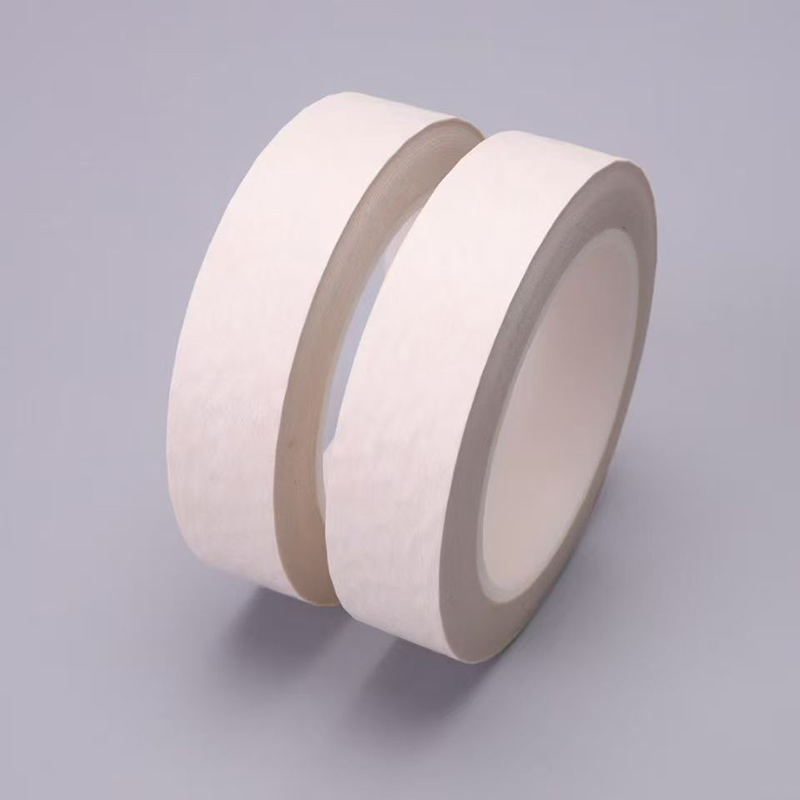

In simple terms, China nomex adhesive tape from Hanyao is an industrial-grade tape made by coating aramid paper with a high-performance pressure-sensitive adhesive (usually acrylic or silicone).Its base material is aramid paper, which is the source of all the tape's superior properties. It is thin, strong, heat resistant (above 220°C), flame retardant (V-0 rating), insulating, chemically resistant, and does not melt or drip.It uses a silicone adhesive, which has a temperature resistance of over 260°C. It is typically applied to one side, while the other side retains the original properties of the aramid paper. Aramid paper tape perfectly inherits the excellent properties of aramid paper and adds convenient adhesive functionality.
| Backing | Adhesion | Standard size | Properties | ||||
| Material | Color | Thickness(mm) | Specification | Peel force(N/25mm) | Elongation(%) | Temperature resistant | |
| Nomex paper | White | silicone | 0.09 | 10mm~914mm*50m | 7.5 | 6.5 | -45℃~260℃ |
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.It has excellent high temperature resistance and can work for extended periods in environments ranging from 180°C to 220°C.
2.It has excellent insulation properties and high electrical strength, making it an ideal electrical insulation material.
3.It has outstanding mechanical properties, including tear resistance, puncture resistance, and tensile strength; it is thin yet strong.
4.It has excellent flame retardancy
5.This Nomex Adhesive Tape is used for fixing and binding motors and generators, phase-to-phase insulation, and slot insulation protection.
