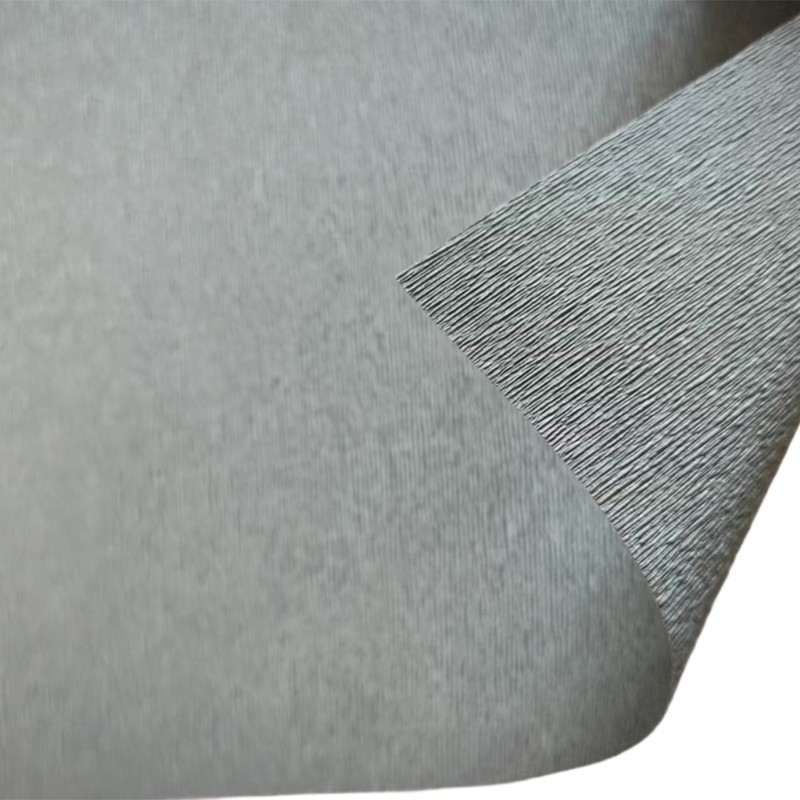

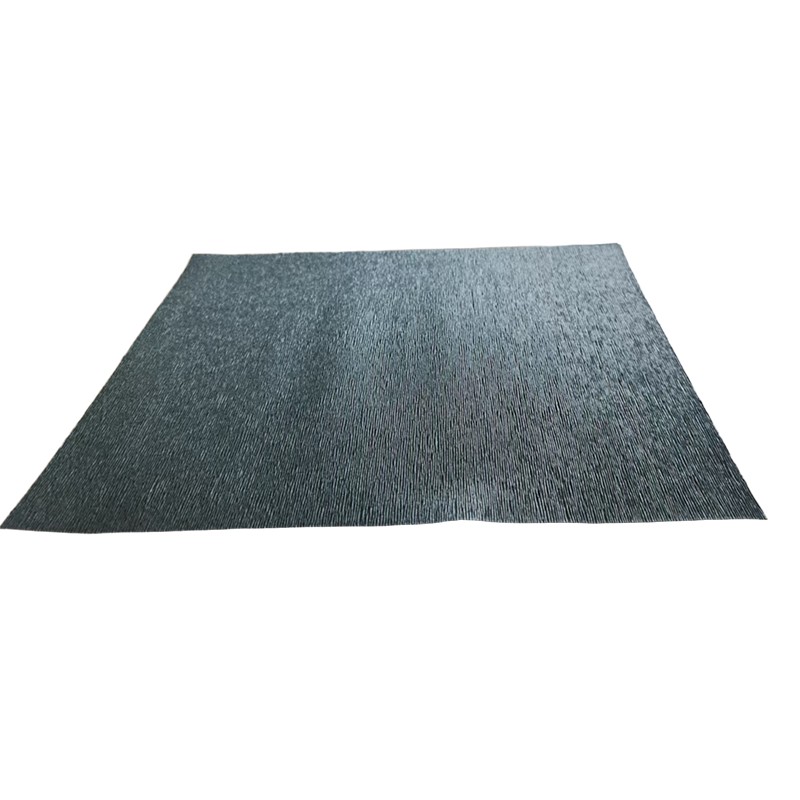

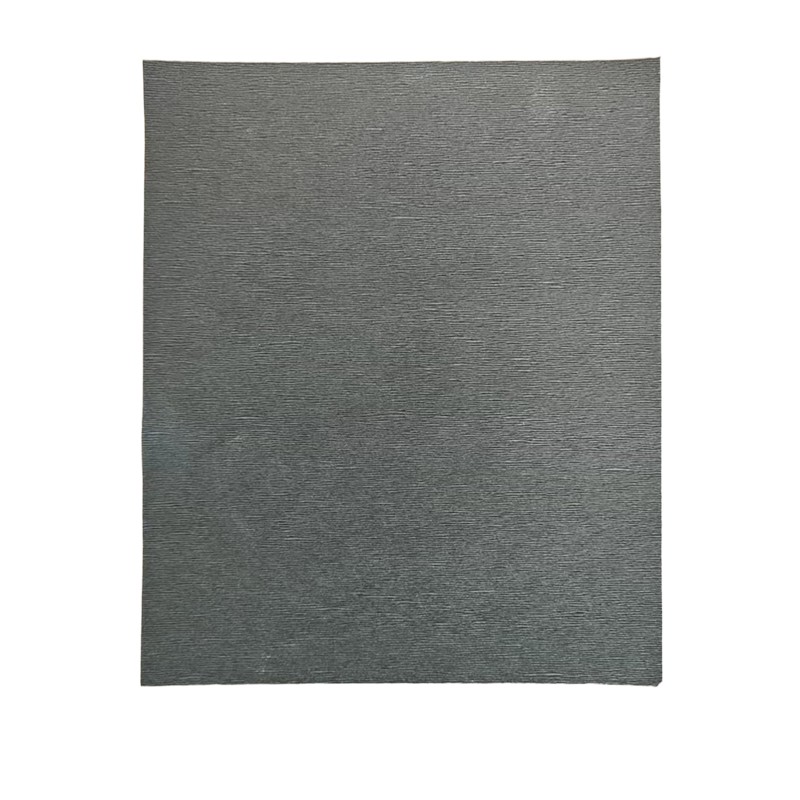

China quality Electrical Insulation semiconductor crepe paper is typically made from unbleached sulfate wood pulp paper as the base material, impregnated or coated with conductive substances such as carbon black, and then processed using a special creping process. Simply put, it is a combination of ordinary insulating crepe paper, conductive carbon black, and a special crepe structure.By precisely controlling the amount of carbon black added, its surface resistivity and volume resistivity are stabilized within a specific "semiconductor" range. This resistance value can effectively homogenize the electric field without causing short circuits or excessive losses.This is its core characteristic.It can homogenize the electric field, prevent partial discharge and insulation breakdown, and inherits the high tensile strength and toughness of cable paper, making it less prone to tearing during wrapping and installation. At the same time, it is highly compatible with the impregnating agents (or casting resins) of cable accessories, together forming a complete insulation system.
| Item | Name | Unit | Value |
| Basic physical properties | Weight per sqm | g/m² | 60,80,100,120 |
| Thickness | mm | 0.08,0.10,0.13,0.18,0.25 | |
| Width | mm | as per requirements | |
| Color | - | Black | |
| Electrical property | Volume resistivity | Ω·cm | 1.0×10³ ~ 1.0×10⁶ |
| Surface resistivity | Ω/sq | 1.0×10³ ~ 1.0×10⁶ | |
| Dielectric constant(1kHz, 23℃) | - | 10 ~ 30 | |
| Dielectric loss factor(1kHz, 23℃) | - | ≤ 0.05 | |
| Michanical property | Tensile strength | kN/m | ≥ 6.0 |
| Elongation | % | ≥ 15 | |
| Chemical and thermal value | Ash content | % | ≤ 0.8 |
| PH value | - | 6~8 | |
| Temperature resistance | ℃ | 120 |
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Electrical insulation semiconductor crepe paper is able to withstand temperature of 120℃.
2.It can homogenize the electric field, prevent partial discharge and insulation breakdown.
3.It has excellent tensile strength and toughness.
4.Electrical insulation semiconductor crepe paper is a new type of electrical material that can be used in products in the transformer, instrument transformer, and cable industries to replace metal foil, semiconductor rubber tape, and surface semiconductor materials, thereby achieving the functions of balancing electric fields and shielding static electricity.
