The structural and operational reliability of oil-immersed transformers depends entirely on the integrity of their internal insulation networks. When high-voltage transformers operate under continuous thermal and electrical stresses, internal conductors require flexible, high-dielectric barriers that can bend without collapsing. We analyzes how the Electrical Insulation Crepe Paper Tube, manufactured by Hanyao, serves as a foundational component in modern solid insulation systems. We examine its raw material chemistry, mechanical behavior under physical bending, chemical interactions with transformer oil, and specific manufacturing parameters to demonstrate how it maximizes transformer operational lifespans.
High-voltage power transformers experience fluctuating electrical fields, intense thermal cycles, and severe mechanical forces during short-circuit events. The internal lead wires and connection conductors exiting the active coil windings must navigate complex paths to reach the terminal bushings.
Using rigid insulating materials along these pathways creates significant operational vulnerabilities. Rigid tubes often crack under mechanical vibrations or distort during assembly, leading to localized insulation failure. When a gap forms in the insulation layer, partial discharges can develop, rapidly degrading the surrounding transformer oil and causing catastrophic system failures.

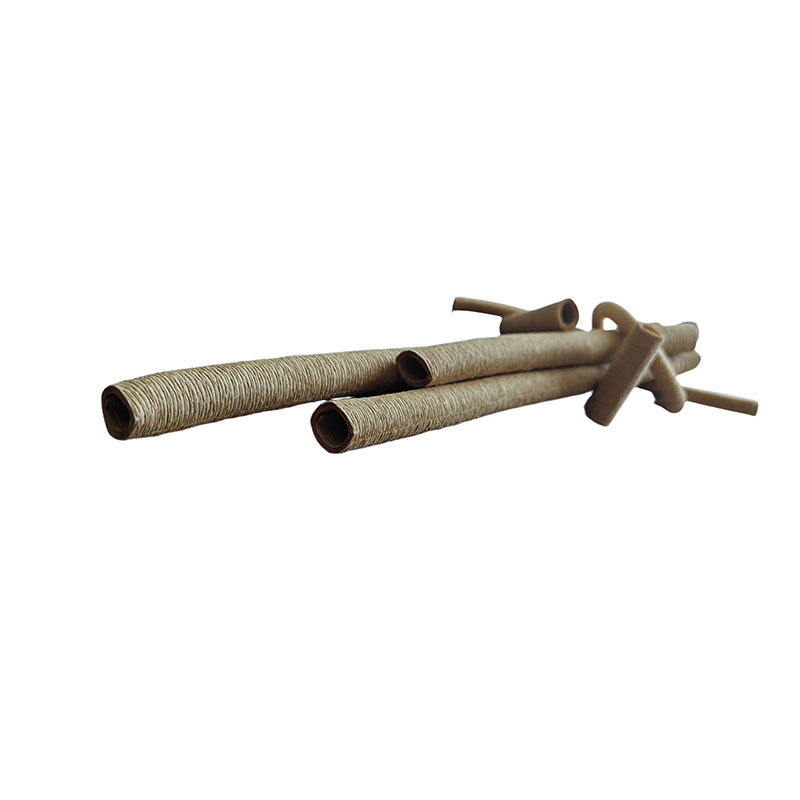

To overcome these physical challenges, transformer engineers specify the high-flexibility Electrical Insulation Crepe Paper Tube produced by Hanyao. This flexible component provides a continuous, highly uniform dielectric barrier that conforms perfectly to curved internal lead wires without cracking or kinking under severe physical duress.
The long-term performance of an Electrical Insulation Crepe Paper Tube depends directly on the purity of its raw materials. Any chemical contamination or residual bleaching agents within the paper structure will accelerate chemical aging when exposed to hot transformer oil.
To prevent premature degradation, the Hanyao manufacturing facility insists on using premium, unbleached sulfuric acid softwood pulp. This specific raw material retains its long, dense natural cellulose fibers, which gives the finished paper tube its exceptional physical properties:
• High Tensile Strength: Long cellulose fibers distribute mechanical loads evenly across the tube wall, allowing it to withstand high tension during manual installation or machine handling.
• Superior Tear Resistance: The unbleached organic structures naturally resist tearing and splitting when subjected to high fluid currents or shifting mechanical forces within the transformer tank.
• Chemical Neutrality: Eliminating bleaching chemicals preserves the paper's molecular stability, ensuring it does not release harmful ions or acidic compounds that could degrade the surrounding transformer oil.
The main advantage of using an Electrical Insulation Crepe Paper Tube instead of a standard rigid paper or plastic sleeve is its excellent flexibility. This flexibility comes from a controlled creping process, which introduces microscopic folds and waves into the base insulating paper before it is wound into a tube.
When a technician bends the tube to follow a tight conductor radius, the microscopic crepe folds on the outer edge expand smoothly to absorb the tensile stress. At the same time, the folds on the inner radius compress cleanly. This behavior allows the tube to maintain a perfectly round inner diameter without pinching or wall rupture, ensuring the internal copper conductor remains fully insulated and protected along the entire bend.
Solid cellulose materials and liquid dielectric oils work together to insulate oil-immersed transformers. The Electrical Insulation Crepe Paper Tube plays a key role in maximizing this interaction.
The micro-creped design provides the paper tube with a significantly larger surface area compared to flat, standard kraft paper sleeves. When submerged in the transformer tank, the porous paper structures function like an organic sponge, absorbing and holding large volumes of insulating oil. This oil-saturated paper assembly blocks conductive paths formed by trace impurities in the fluid, delaying material aging and allowing the system to withstand high electric field stresses.
Because the oil-saturated crepe paper retains a high volume of oil directly against the conductor surface, it facilitates efficient heat transfer away from hot copper lead wires. This cooling effect lowers the transformer's localized operating temperature, protecting the Class A (105°C) insulation framework from thermal breakdown during peak load periods.
Industrial transformer manufacturing requires precise dimensional compliance to ensure that insulating components fit perfectly over copper lead wires. Small sizing variations can create dangerous internal clearance issues.
The specification matrix below details the standard engineering tolerances maintained across the Hanyao production line.
| Structural Parameter | Calibrated Dimension Metric | Technical Tolerance Baseline |
| Inner Diameter (ID) | Range from 4 mm to 68 mm | Precision variance of ± 0.5 mm |
| Wall Thickness (T) | Configurable from 1 mm to 6 mm | Uniform layer application criteria |
| Outer Diameter (OD) | Calculated as ID + 2T | Proportional to custom configurations |
| Standard Length | 1000 mm to 1500 mm sections | Length deviation allowance of 20 mm |
| Dielectric Strength (T = 1) | Verified at 15 Kv minimum | Tested under strict oil immersion |
| Dielectric Strength (T = 1.5) | Verified at 20 Kv minimum | Tested under strict oil immersion |
| Dielectric Strength (≥ 2) | Verified at 35 Kv minimum | Tested under strict oil immersion |
| Thermal Endurance Rating | Certified up to Class A (105°C) | Long-term operational performance |
| Base Material Source | Unbleached sulfuric acid softwood pulp | Raw material purity tracking |
Sourcing reliable insulation components is essential for global transformer manufacturers who must guarantee decades of trouble-free equipment operation.
Every batch of insulation materials manufactured by Hanyao undergoes strict quality testing. At the request of global clients, our materials are regularly submitted to the independent third-party laboratory CEMT for validation. This testing verifies dielectric strength, oil compatibility, and thermal stability, ensuring compliance with strict international performance standards.
Located in Suzhou City, our production facility is positioned just 100 km from the Port of Shanghai. This strategic geographic position enables rapid shipping and reliable delivery schedules for international buyers. To protect sensitive cellulose products during long-distance maritime transit, every order is packed securely in heavy-duty, dust-proof cardboard boxes to guarantee it arrives completely dry and ready for manufacturing.
Yes. Our production facility is equipped with automated slitting and winding machinery, allowing us to process regular-size materials into custom inner diameters and wall thicknesses tailored to your specific transformer design requirements.
Cellulose materials naturally absorb moisture, which lowers their overall dielectric strength. To ensure optimal performance, the insulated core assembly should undergo a standard vacuum drying and oil impregnation cycle before the transformer is filled and sealed.
We offer a comprehensive range of insulation materials, allowing you to source diamond dotted paper, precompressed pressboard, insulating kraft paper, polyester films, polyimide films, and multi-layer flexible laminates like NMN, NHN, and AMA in a single consolidated shipment.
Stable internal insulation is the core guarantee for long-cycle and safe operation of high-voltage oil-immersed transformers. Rigid insulating sleeves can easily cause insulation breakdown during equipment assembly and long-term operation, while Hanyao electrical insulation crepe paper tubes perfectly solve bending insulation pain points with excellent flexibility, stable dielectric properties and good oil compatibility.
Backed by professional insulation material manufacturing experience, Hanyao supports full-size customization, strict dimensional tolerance control and third-party quality testing. All products match international transformer industry standards, and we provide fast global shipping services relying on superior geographical logistics advantages. To purchase high-quality Electrical Insulation Crepe Paper Tube and get professional electrical insulation solution support, contact us now to get free material samples and an accurate customized quotation.
