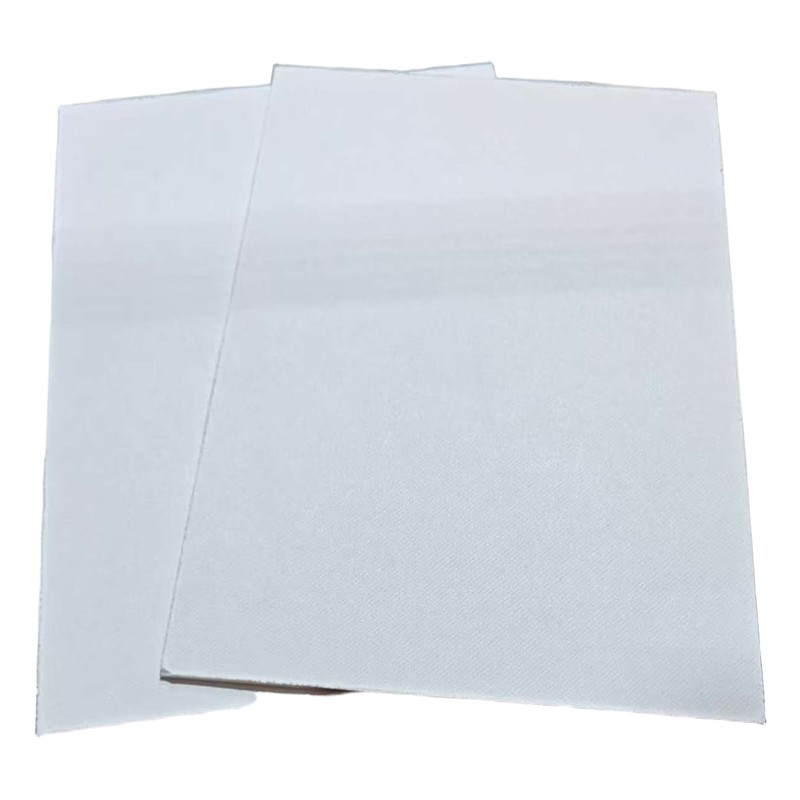

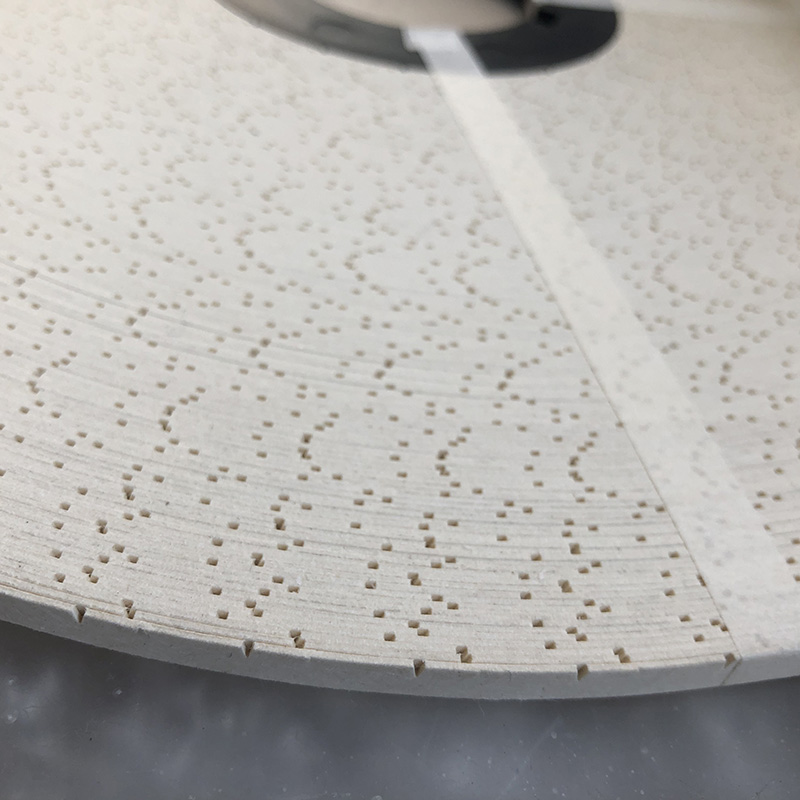

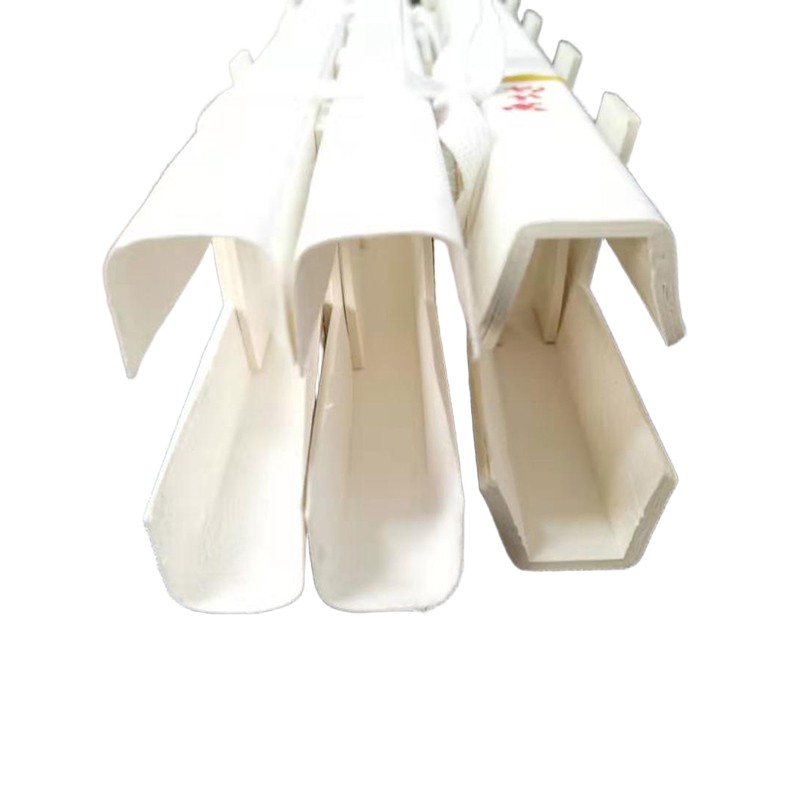

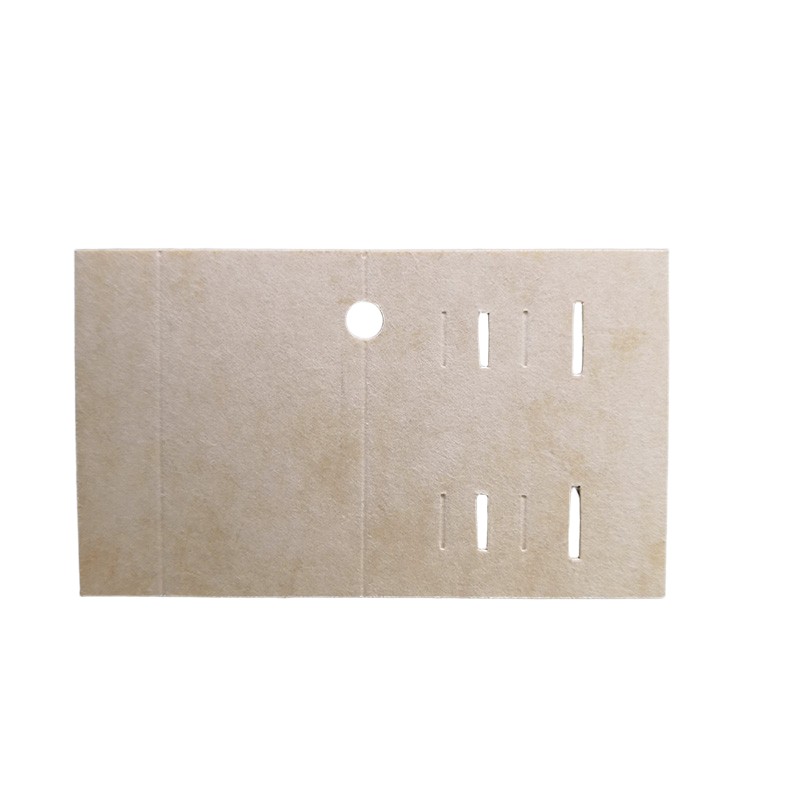

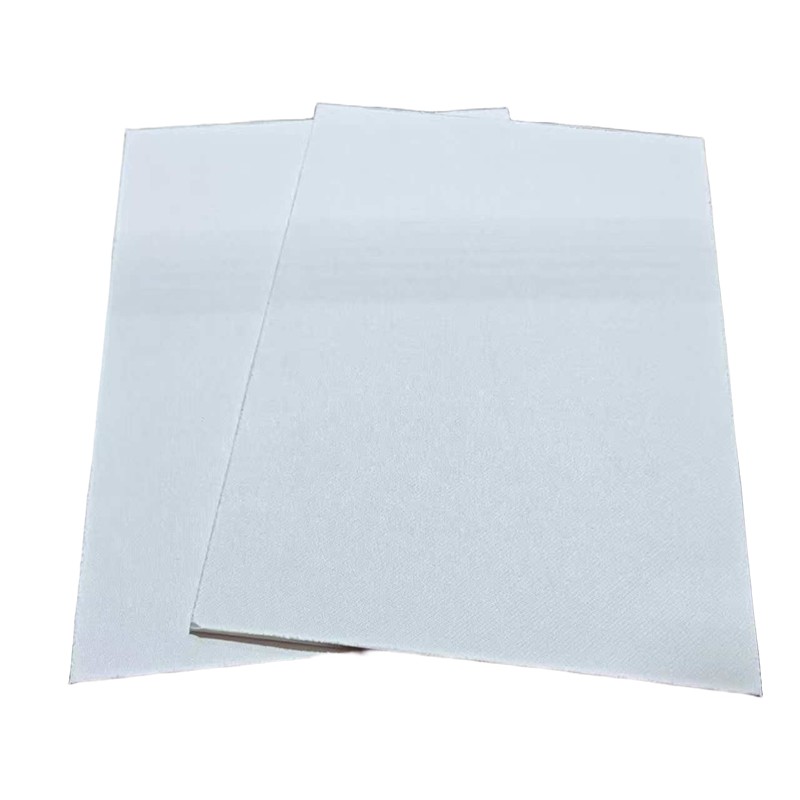

Electrical insulation aramid board produced by Hanyao factory is available in low, medium, and high density grades. Made from 100% aramid fiber, it offers excellent heat resistance, chemical stability, electrical and mechanical strength, and good saturation resistance. It combines rigidity with processability, and performs well in both air and oil. Typical applications include molded parts such as V-rings, angle rings, and peripheral insulation for transformers, gap spacers, and rolled sleeves.
| Norminal Thickness | mm | 1.6 | 3.2 | |
| Weight per SQM | g/m2 | 960 | 1860 | |
| Density | g/cc | 0.6 | 0.6 | |
| Tensile strength | MD | N/cm | 420 | 890 |
| CD | 300 | 620 | ||
| Elongation | MD | % | 9.5 | 10 |
| CD | 9.5 | 10 | ||
| Oil absorbtion | CD | % | 100 | 100 |
| Dielectric Strength in air | kV/mm | 15 | 13 | |
| Dielectric Strength in oil | kV/mm | 48 | 45 | |
| Relative dielectric constant | / | 1.7 | 1.7 | |
| dielectric loss factor | ×10-3 | 8 | 8 | |
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Electrical insulation aramid board is C class insulation material which is able to withstand temperature upto 220℃
2.It has high levels of electrical, chemical, and mechanical strength.
3.It has good compatibility with almost all grades of insulating varnishes and adhesives
4. Aramid cardboard should be stored in a clean environment with a temperature no higher than 35°C and a relative humidity no higher than 75% RH, away from direct sunlight. Do not store in the open air, in the sun, or in a damp environment.
