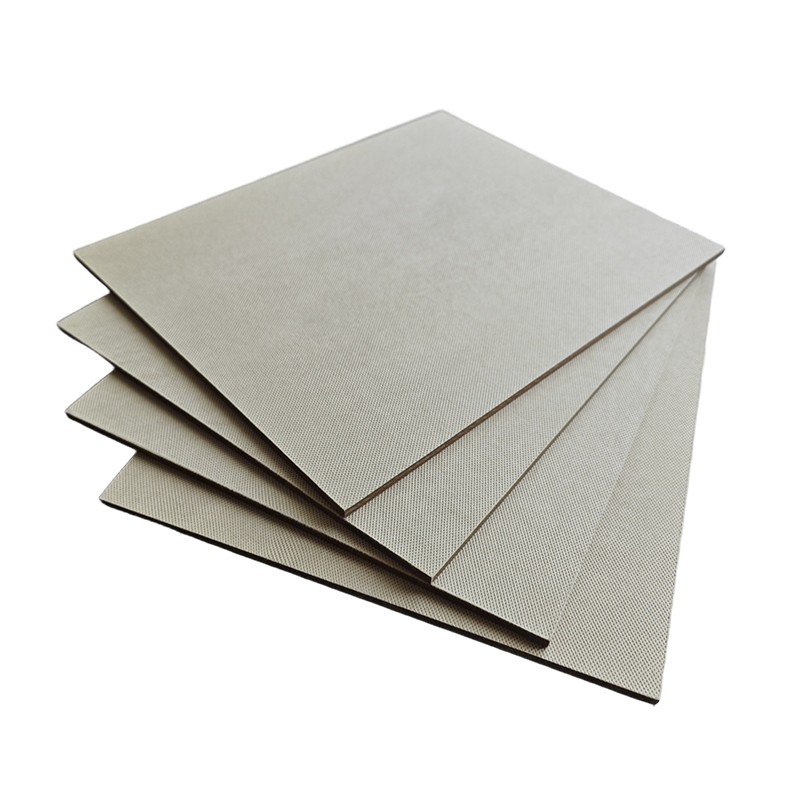

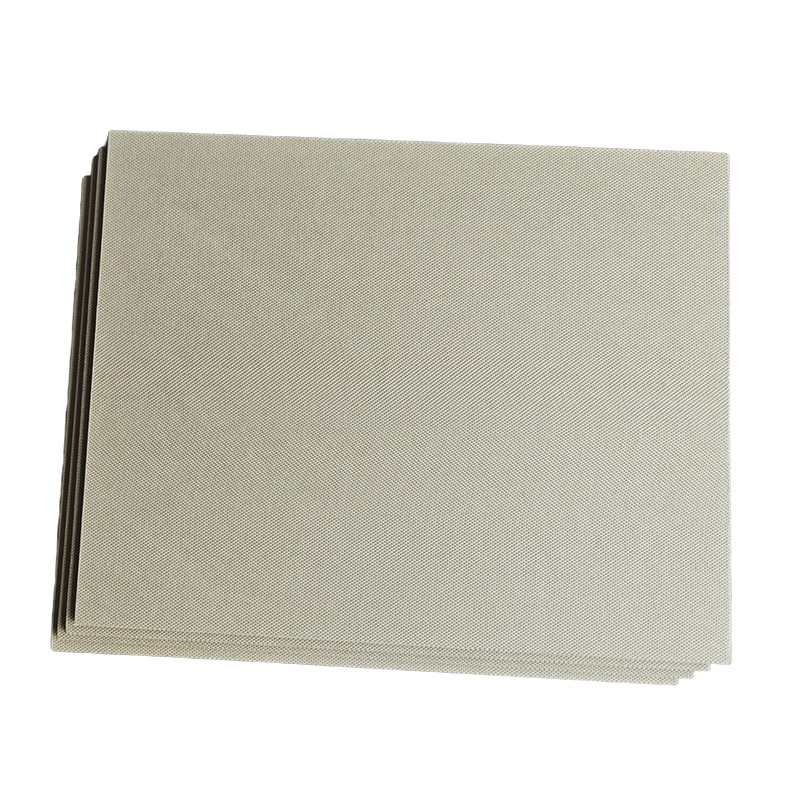

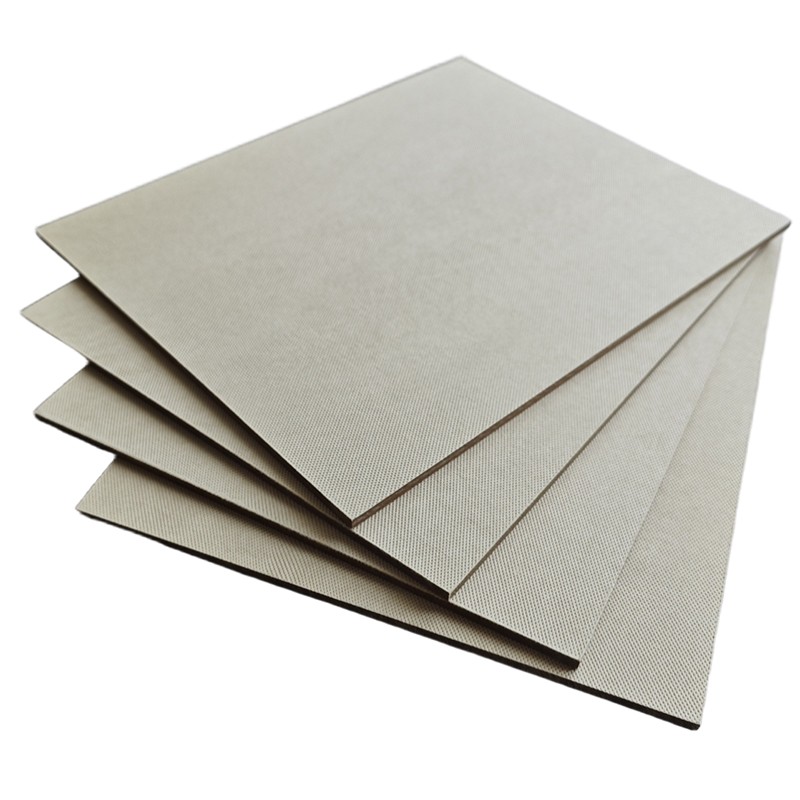

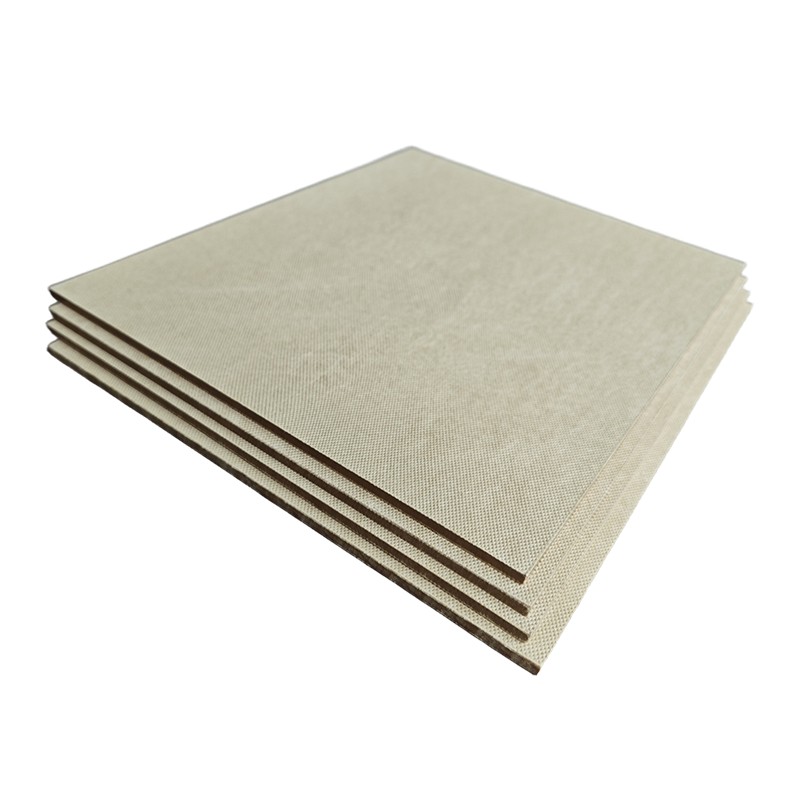

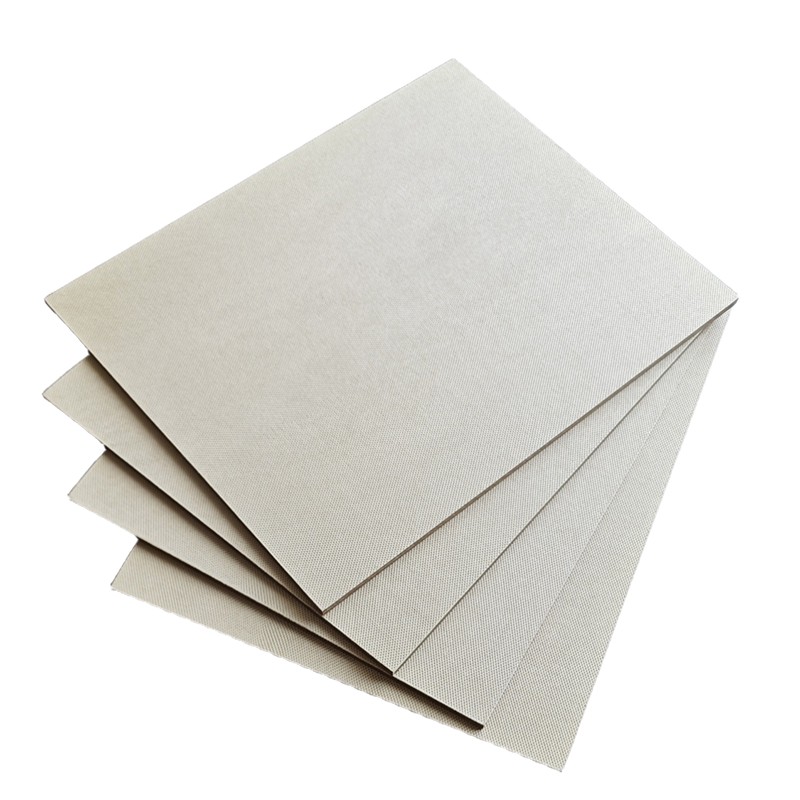

Hanyao is a professional supplier of electrical insulation precompressed pressboard. Press board is a very important insulation material in oil transformers. It is produced under high temperature and pressure,in order to compress and dry layers of sulphate wood pulp. After the process, a rigid board comes out with great mechanical and electrical strength as well as excellent dimensional stability, which are critical properties to ensure the normal operation and life span of a transformer.Other than this, press board with good quality must not contain metal particles, the surface must not have cracks, holes, blisters, water stains and other stains, and the edges must be cut neatly. We have abundant experience in sales and process of press board and we accept customized solutions by offering different sizes to meet requirements of our customer.
| No. | Item | Thickness（mm） | Requirement | Test methods | ||
| ＞ | ≤ | |||||
| 1 | Thickness deviation % | - | 1.6 | ±7.5 | IEC60641-3-1:B3.1A | |
| 1.6 | 3 | ±5.0 | ||||
| 3 | - | ±4.0 | ||||
| 2 | Surface density gm/cc | - | 1.6 | 1.00-1.20 | ||
| 1.6 | 3 | 1.10-1.25 | ||||
| 3 | - | 1.15-1.30 | ||||
| 3 | Oil absorbtion %（min.） | - | 1.6 | 11 | ||
| 1.6 | 3 | 9 | ||||
| 3 | 6 | 7 | ||||
| 6 | - | 6 | ||||
| 4 | Compresibility %(max.) | - | 1.6 | 10 | ||
| 1.6 | 3 | 7.5 | ||||
| 3 | 6 | 5 | ||||
| 6 | - | 4 | ||||
| 5 | Reversible part of Compressibility %(min.) | - | 1.6 | 45 | ||
| 1.6 | 3 | 50 | ||||
| 3 | 6 | 50 | ||||
| 6 | - | 50 | ||||
| 6 | Tensile strength Mpa(min.) | MD | - | 1.6 | 105 | |
| 1.6 | 3 | 110 | ||||
| 3 | - | 115 | ||||
| TD | - | 1.6 | 80 | |||
| 1.6 | 3 | 85 | ||||
| 3 | - | 90 | ||||
| 7 | Breakdown strength Kv/mm(min.) | in oil | - | 1.6 | 45 | |
| 1.6 | 3 | 40 | ||||
| 3 | - | 35 | ||||
| in air | All thickness | 12 | ||||
| 8 | Conductivity of aqueous extract ms/m（max.） | - | 1.6 | 4.5 | ||
| 1.6 | 3 | 5.5 | ||||
| 3 | 6 | 7.5 | ||||
| 6 | - | 9.5 | ||||
| 9 | Shringkage %（max.） | MD | 0.4 | |||
| TD | 0.6 | |||||
| Vertical | 4.5 | |||||
| 10 | Elongation %（min.） | MD | 3.5 | |||
| TD | 4 | |||||
| 11 | Water content %（max.） | 6 | ||||
| 12 | Ash content %（max.） | 0.5 | ||||
| 13 | PH of aqueous extract | 6.0~9.0 | ||||
| 14 | Polymerization（min.) | 1200 | ||||
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Hanyao press board complies with IEC60641-3-1:B3.1A,and is suitable for transformer upto 765kv.In addition,we have different sizes like 1000mm*2000mm,2100mm*3200mm,2200mm*4400mm

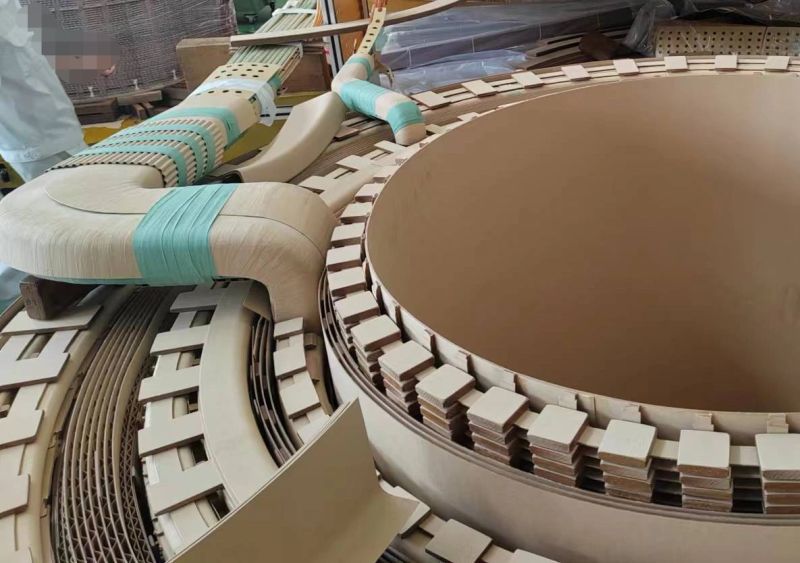

2.Electrical insulation precompressed pressboard is widely used in transformers for cylinders, spacers and other components requiring insulation.
