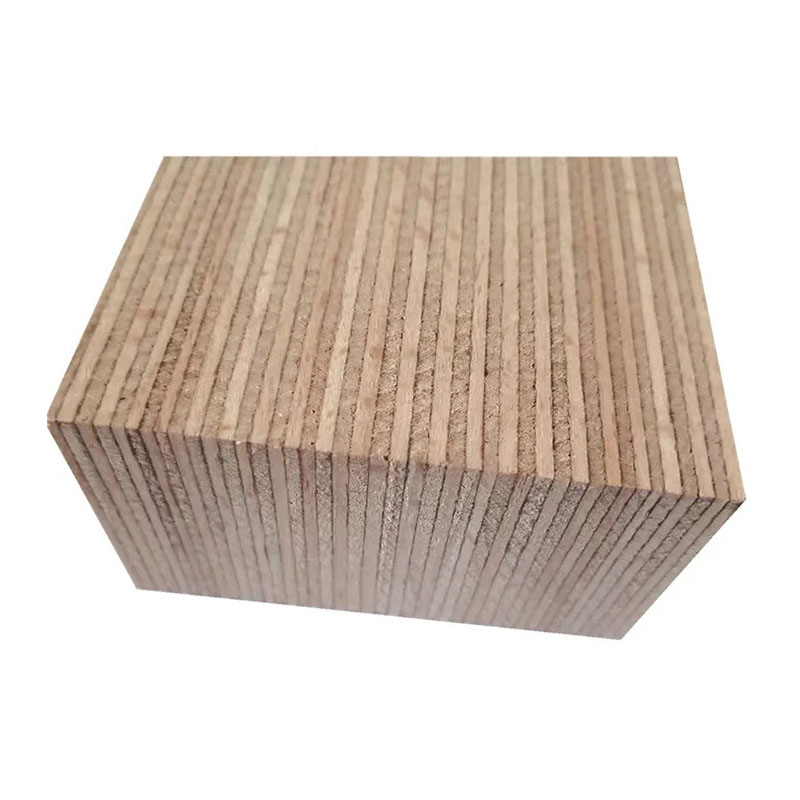

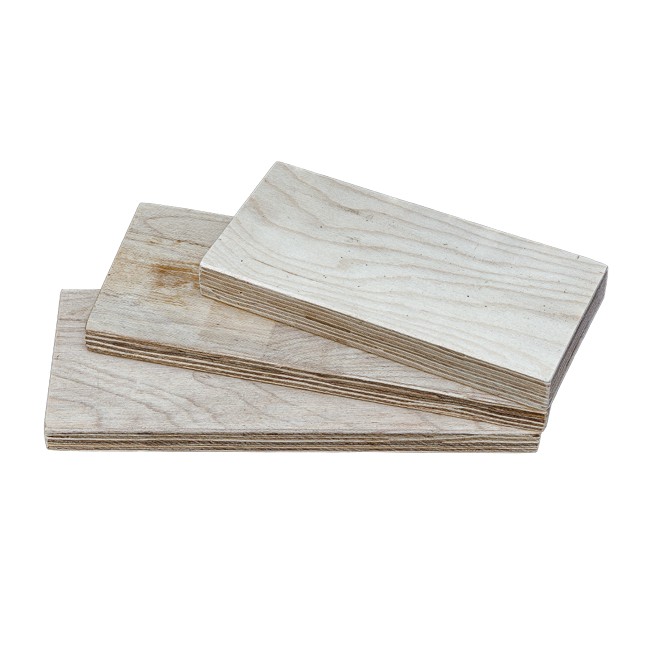

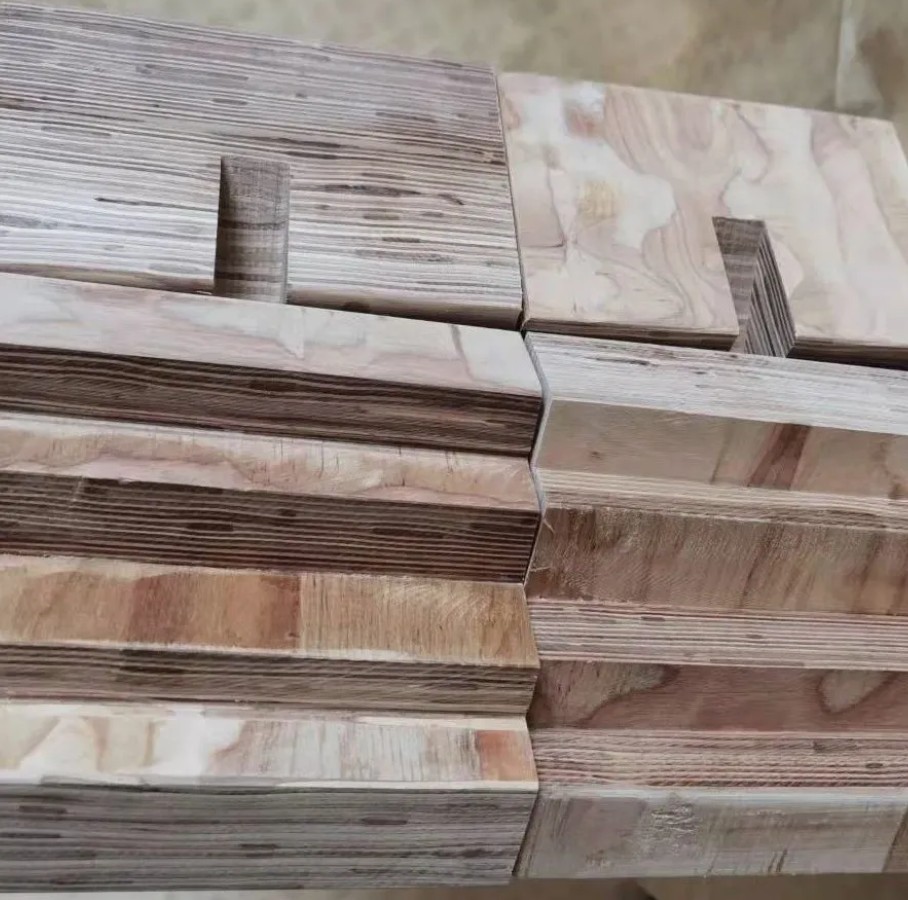

Hanyao has firm cooperations with several main factories with good name. Laminated High Densified Perma Wood is used as an insulation material to support others parts in transformers. The raw material beech wood must be carefully selected, it has good durability, high density and good abrasion resistance. Impregnated with special resin and then pressed under high pressure, a durable and chemically resistant product is created. In addition, Hanyao is able to provide customized since the laminated wood can be processed into other kinds of materials as required.
| Capability | Unit | Veneer technical requirement | |||||
| Density | g/cm3 | 1.1-1.2 | 0.7-0.9 | 0.9-1.1 | 1.1-1.2 | 1.2-1.3 | |
| Moisture | % | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 | |
| Vertical layer direction flexural strength | Direction A | Mpa | ≥150 | ≥45 | ≥55 | ≥65 | ≥80 |
| Direction B | |||||||
| Vertical layer direction flexural modulus of elasticity | Direction A | Gpa | ≥14 | ≥4.5 | ≥6 | ≥8 | ≥9 |
| Direction B | - | ||||||
| Compressibility (below 20Mpa) | C | % | ≤3 | ≤5 | ≤4 | ≤3 | ≤2.5 |
| Crev | ≥70 | ≥70 | ≥70 | ≥70 | ≥70 | ||
| Impact Strength (side test) | Direction A | KJ/m2 | ≥35 | ≥6 | ≥10 | ≥13 | ≥15 |
| Direction B | - | ||||||
| Sheer Strength | Mpa | ≥8 | ≥5 | ≥7 | ≥8 | ≥9 | |
| Vertical layer direction electric strength in oil 90±2℃ | KV/mm | ≥11 | ≥9 | ≥10 | ≥11 | ≥12 | |
| Parallel layer direction puncture voltage in oil 90±2℃ | KV | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | |
| Shrinkage after drying | Direction A | % | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Direction B | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ||
| Thickness | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||
| Contamination of liquid electrolytes | - | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | |
| Oil absorption | % | ≥8 | ≥20 | ≥15 | ≥8 | ≥50 | |
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Laminated High Densified Perma Wood has good electrical properties high mechanical strength, stable dimensional ability.
2.It can be used in 105℃ transformer oil for long time.
3.It has good oil absorption.
4.It is easy to die cut into different shapes as per requirements.
5.It has low thermal conductivity.
6.It is used as support in oil filled transformers.
