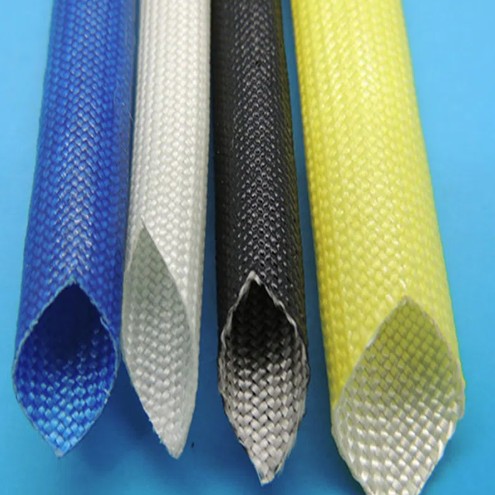

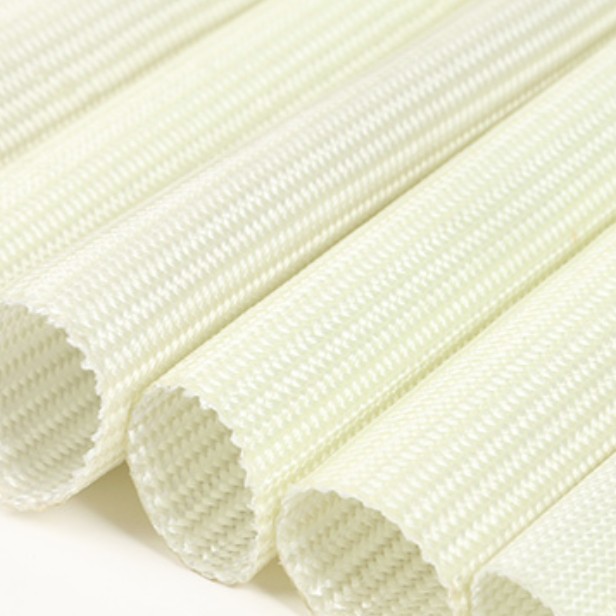

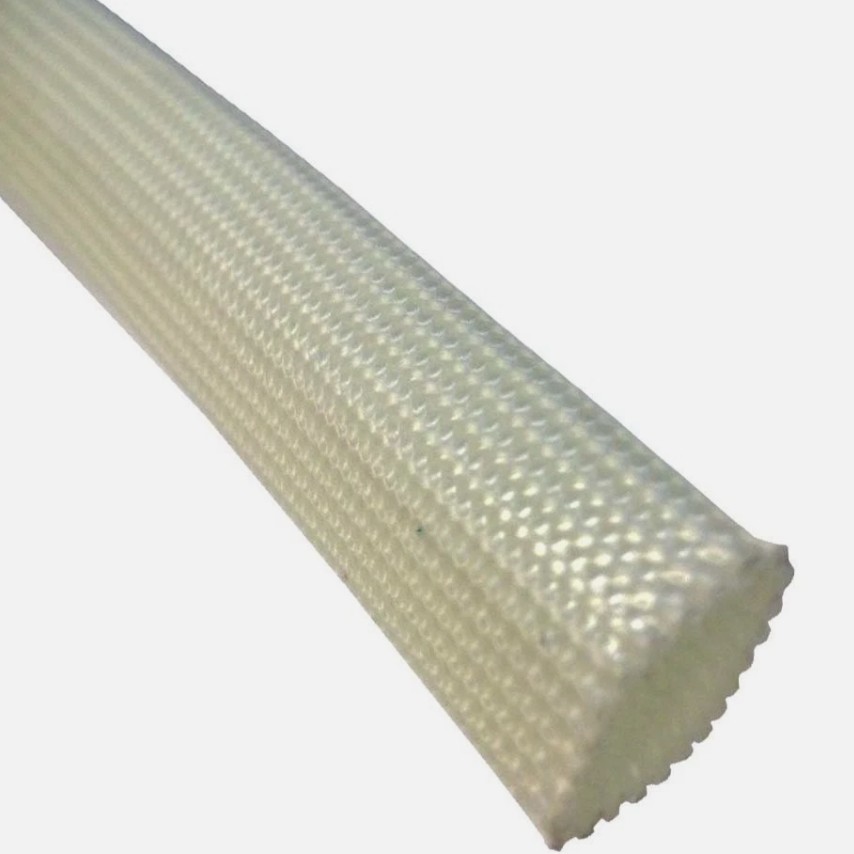

China Acrylic Coated Fiberglass Sleeve from Hanyao,is a type of hose made by coating or impregnating fiberglass cloth or braided yarn with acrylic resin.Its base material is glass fiber, which provides structural strength, heat resistance, and dimensional stability.Its coating is made of acrylate resin, a synthetic polymer used to fix the glass fibers, provide protection, and give the hose a certain degree of flexibility and toughness.
Its continuous operating temperature is typically between -30°C and +130°C, with short-term peak temperatures reaching +150°C.Compared to silicone fiberglass sleeve,its temperature resistance rating cannot reach 180 degrees Celsius, therefore it is not suitable for high-temperature applications.However, its price is significantly lower than that of silicone fiberglass hoses.
It is a very economical choice for applications where extreme high-temperature resistance is not required.However, due to the use of glass fiber, it also has high mechanical strength and tear resistance, as well as good wear resistance.In short, if you need an all-around waterproof and oil-resistant sleeve and the ambient temperature is not high, acrylic fiberglass sleeve are a very cost-effective choice.
| Inner dia(mm) | ID tolerance(mm) | Wall thickness(mm) | Break down Voltage | Working temperature | ||
| bilateral(±) | unilateral（+） | Min | Max | |||
| 0.5 | 0.1 | 0.2 | 0.25 | 0.5 | 1.5kv~4kv | -30℃~150℃ |
| 1/1.5 | 0.15 | 0.3 | 0.25 | 0.75 | ||
| 2/2.5 | 0.2 | 0.4 | 0.35 | 0.75 | ||
| 3 | 0.25 | 0.5 | 0.4 | 0.75 | ||
| 4/5/6 | 0.25 | 0.5 | 0.5 | 0.75 | ||
| 8 | 0.5 | 1 | 0.5 | 0.75 | ||
| 10/12/16 | 0.5 | 1 | 0.65 | 1 | ||
| 20/25 | 0.5 | 1 | 0.65 | 1 | ||
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Acrylic Coated Fiberglass Sleeve is F class insulation materials.Its most prominent features are excellent oil resistance and moisture resistance
2.It has excellent electrical insulation properties.
3.It has high flexibility and strength, and can be bent and folded without damage, while maintaining the high tensile strength of glass fiber.
4.It has excellent chemical resistance and is not easily corroded or degraded.
5.It is mainly used in the low-temperature areas inside transformers or motors, for low-temperature wiring and sensor wires.
