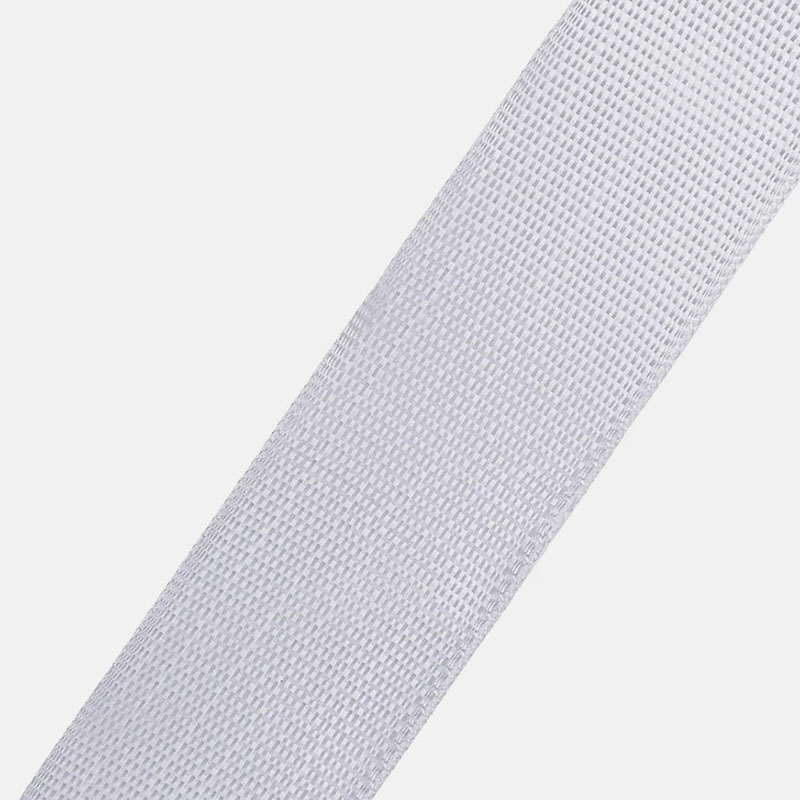

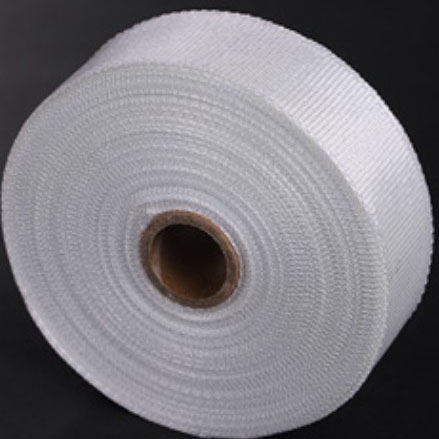

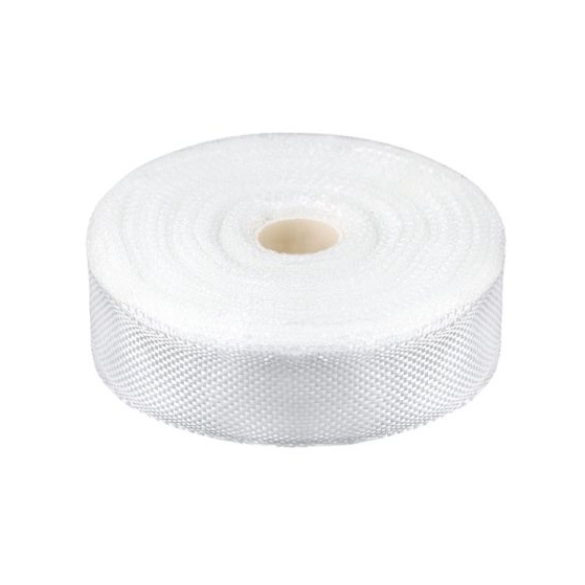

Electrical Insulation Non Alkali Fiberglass Tape is a composite tape consisting of three parts.Firstly alkali-free fiberglass cloth provides it with excellent electrical insulation and water resistance. Secondly the adhesive, depending on temperature resistance requirements, is typically an acrylic pressure-sensitive adhesive or a silicone pressure-sensitive adhesive. Thirdly,the release layer is a release paper or film coated with silicone oil, used to protect the adhesive surface.Fiberglass cloth provides extremely high strength and stability, while adhesive ensures a strong bond.Fiberglass itself has extremely high strength. When woven into fabric, the tape possesses exceptionally high tensile strength, making it difficult to break and highly durable. Fiberglass cloth itself is non-combustible and can withstand long-term temperatures up to 550℃ without decomposition. Its final temperature resistance rating depends on the adhesive used. Silicone adhesives can withstand long-term temperatures of 180-260℃ and short-term temperatures exceeding 300℃, while acrylic adhesives generally withstand temperatures of 100-150℃.
| No. | Item | Requirments | Note |
| 1 | Substrate | Alkali-free fiberglass cloth | E-glass |
| 2 | adhesive | Acrylic/silicone | Determines the upper limit of temperature resistance and viscosity |
| 3 | Thickness | 0.10 - 0.25 mm | Contains adhesive layer |
| 4 | Long-term heat resistance | 150°C (acrylic glue) / 200-260°C (silicone glue) |
|
| 5 | Heat resistance of substrate | upto 550°C |
|
| 6 | Tensile strength | ≥ 100 N/cm | Core advantage: Not easily broken |
| 7 | Dielectric strength | 5 - 8 kV | Excellent insulation |
| 8 | Color | white |
|
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Electrical Insulation Non Alkali Fiberglass Tape is able to withstand temperature upto 180℃.
2.It has extremely high tensile strength and tear resistance.
3.It has good dimensional stability, does not absorb water, does not shrink, and does not expand, maintaining its shape and size under different temperature and humidity environments.
4.It is resistant to most chemicals, oil stains and solvents, and will not mold.
5.It is suitable for transformer, motor, and coil manufacturing: used for bundling and securing coils, and providing interlayer insulation. Its high strength resists loosening caused by electromagnetic forces.
