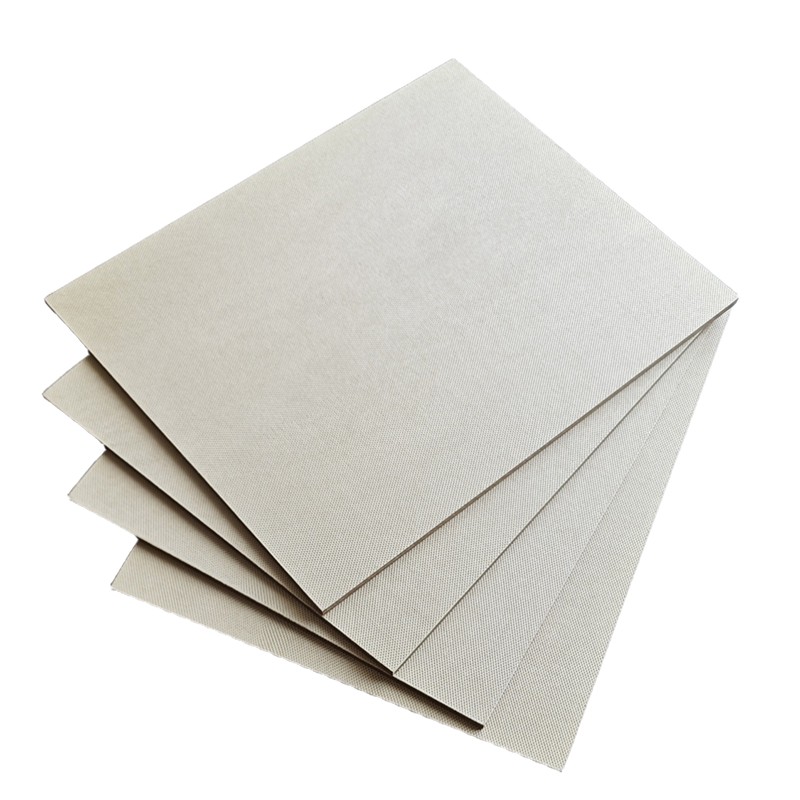

Electrical insulation precompressed pressboard is a vital material widely used in power transformers and electrical equipment. It provides excellent dielectric strength, mechanical stability, and long-term reliability under extreme conditions. In this comprehensive guide, we explore what precompressed pressboard is, its properties, applications, manufacturing process, and why it is essential for modern electrical systems.
Electrical insulation precompressed pressboard is a high-density cellulose-based insulating material primarily used in oil-filled transformers. It is manufactured by compressing layers of high-quality electrical-grade pulp under controlled temperature and pressure conditions.
The "precompressed" nature of this material ensures:
This material is especially designed to withstand high electrical stress and mechanical forces in transformers, making it indispensable in power transmission systems.
Precompressed pressboard offers exceptional dielectric strength, ensuring safe and efficient operation of electrical equipment even under high voltage conditions.
It maintains structural integrity under pressure, preventing deformation during transformer operation.
The material can withstand high temperatures without losing its insulating properties, making it ideal for long-term use.
It is fully compatible with transformer oil, ensuring no contamination or degradation over time.
The production of electrical insulation precompressed pressboard involves several critical steps:
This advanced process ensures consistent quality and performance in demanding electrical applications.
Electrical insulation precompressed pressboard is widely used in various applications:
In transformers, it is commonly used for:
| Property | Precompressed Pressboard | Nomex | Epoxy Resin |
|---|---|---|---|
| Dielectric Strength | High | Very High | Moderate |
| Mechanical Strength | Excellent | Good | High |
| Thermal Resistance | Good | Excellent | Excellent |
| Cost | Cost-effective | High | Moderate |
| Environmental Impact | Eco-friendly | Synthetic | Synthetic |
| Parameter | Typical Value |
|---|---|
| Density | 1.15 – 1.30 g/cm³ |
| Moisture Content | < 7% |
| Dielectric Strength | > 10 kV/mm |
| Thickness Range | 0.5 mm – 8 mm |
| Color | Natural / Light Brown |
Selecting the right electrical insulation precompressed pressboard depends on several factors:
Working with a trusted manufacturer ensures optimal product selection and performance.
Proper maintenance can significantly extend the life of insulation materials:
With proper care, precompressed pressboard can last decades without performance degradation.
Hanyao is a trusted name in the electrical insulation industry, offering high-quality precompressed pressboard solutions tailored to modern power systems.
By choosing Hanyao, customers benefit from durable, efficient, and high-performance insulation materials designed to meet evolving industry demands.
It is used as an insulating and structural material in transformers to ensure electrical safety and mechanical stability.
Precompressed pressboard has higher density and better mechanical and electrical properties due to additional compression during manufacturing.
Yes, it offers good thermal stability and performs well under elevated temperatures in transformer applications.
Yes, it is made from natural cellulose fibers and is biodegradable.
With proper maintenance, it can last several decades in transformer systems.
Electrical insulation precompressed pressboard plays a crucial role in ensuring the efficiency, safety, and longevity of electrical equipment, especially transformers. Its superior mechanical strength, dielectric performance, and environmental advantages make it a preferred choice in the power industry.
If you are looking for reliable, high-quality insulation solutions, Hanyao provides industry-leading products tailored to your needs. Contact us today to learn more about our electrical insulation precompressed pressboard and how we can support your projects with premium materials and expert service.
