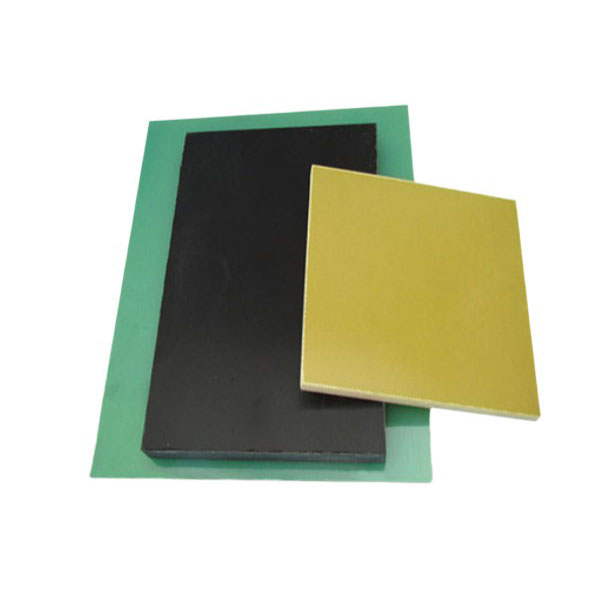

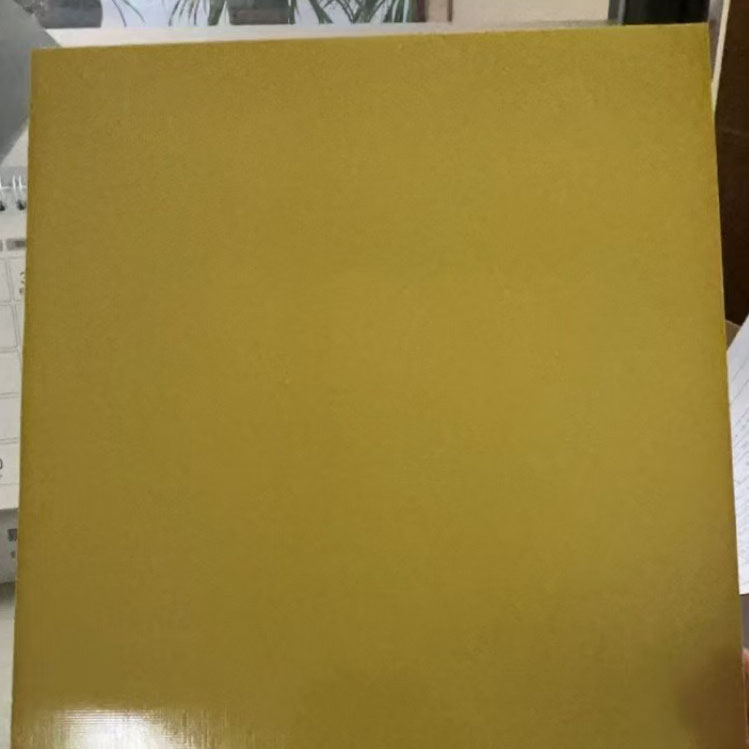

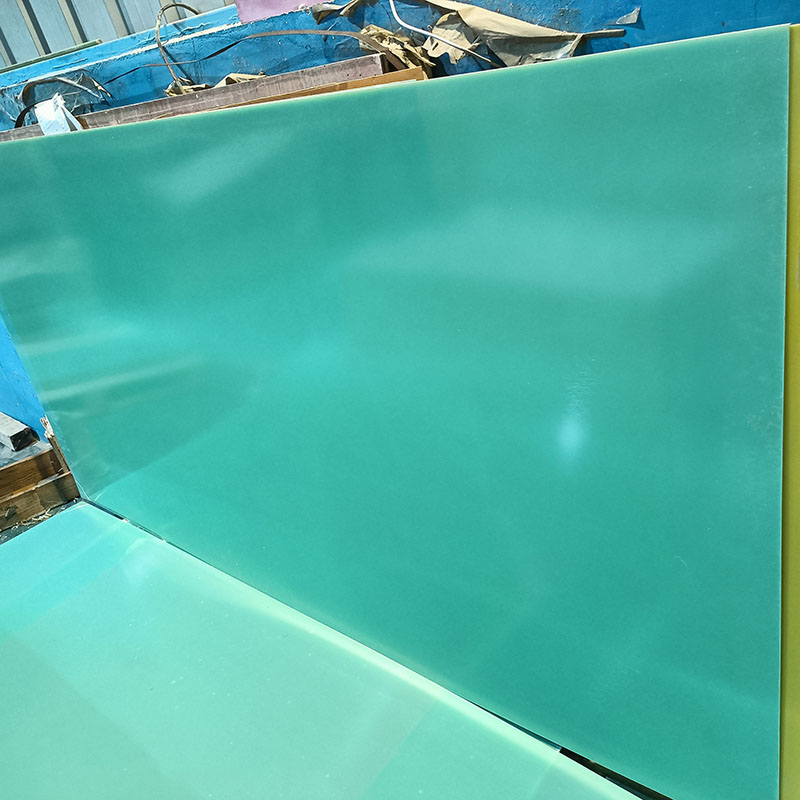

As a manufacturer, Hanyao provides quality Electrical Insulation EPGC 308 Epoxy Fiberglass Board. This board is made by impregnating alkali-free glass fiber cloth with epoxy-modified phenolic resin and then curing it by hot pressing. They are usually dark brown or yellowish-brown and have a smooth surface.EPGC 308 can be understood as a "high-performance FR-4" or a "rigid board focused on Class H insulation".Its long-term operating temperature can reach 180-200℃, meeting the H-class (180℃) insulation standard.
This is its most critical advantage over ordinary FR-4 (usually B-class, 130℃).Fiberglass cloth offers extremely high mechanical strength and dimensional stability, and maintains good performance, especially at high temperatures.It can maintain good electrical insulation strength even in high temperature and harsh environments.Compared to organic fiber materials (such as phenolic fabric boards), it does not absorb moisture and has stable performance.
| Item | Parameter name | Requirements | Test Method |
| Mechanical properties | Density | 1.70 - 1.90 g/cm³ | - |
| Bending strength | ≥ 350 MPa | ASTM D790 | |
| Impact strength | ≥ 150 kJ/m² | ASTM D256 | |
| Martin's heat resistance | ≥ 200 °C | GB/T 1034 | |
| Thermal properties | Long-term heat resistance | 180 - 200 °C | - |
| Linear expansion coefficient | lower | - | |
| Thermal stability | Excellent | - | |
| Electrical properties | Breakdown voltage | ≥ 25 kV/mm | ASTM D149 |
| Volume resistivity | ≥ 10¹³ Ω·cm | ASTM D257 | |
| Surface resistivity | ≥ 10¹³ Ω | ASTM D257 | |
| Relative permittivity | 4.5 - 5.5 (50Hz) | ASTM D150 | |
| Chemical and environmental performance | Hygroscopicity | < 0.1% | ASTM D570 |
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.EPGC 308 Epoxy Fiberglass Board is able to withstand temperature upto 180℃.
2.The Electrical Insulation EPGC 308 Epoxy Fiberglass Board has high hardness, excellent dimensional stability, and is not easily deformed.
3.It can maintain good electrical insulation strength even in high-temperature environments.
4.The glass fiber and dense resin structure make it non-hygroscopic, and its performance is not affected by humid environments.
5.It is mainly used in H-class motor and generator insulation, or as an insulating partition, support and frame between windings, especially in high-power, high-heat dry-type transformers,as well as insulating partitions and support plates in switchgear and circuit breakers, especially in applications requiring high heat resistance and mechanical strength.
