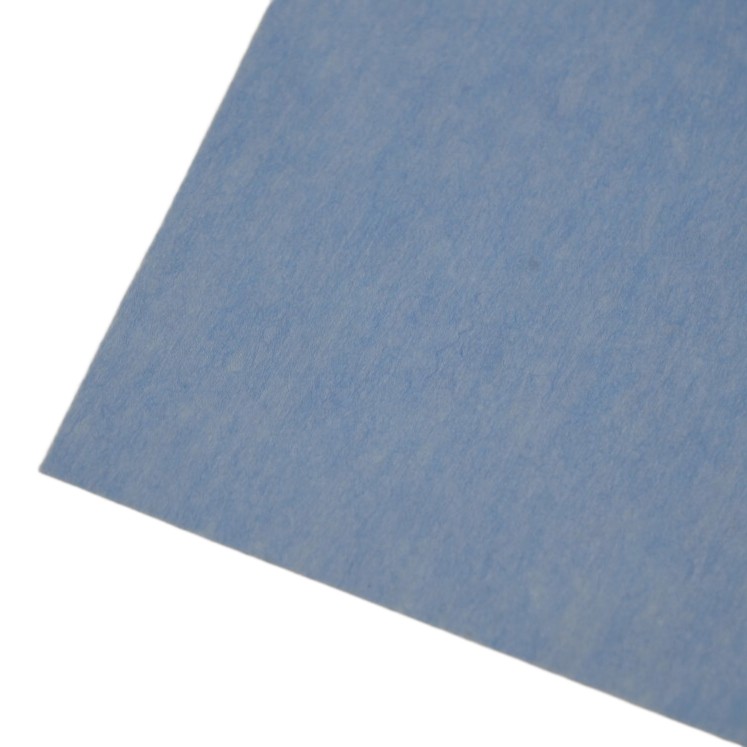

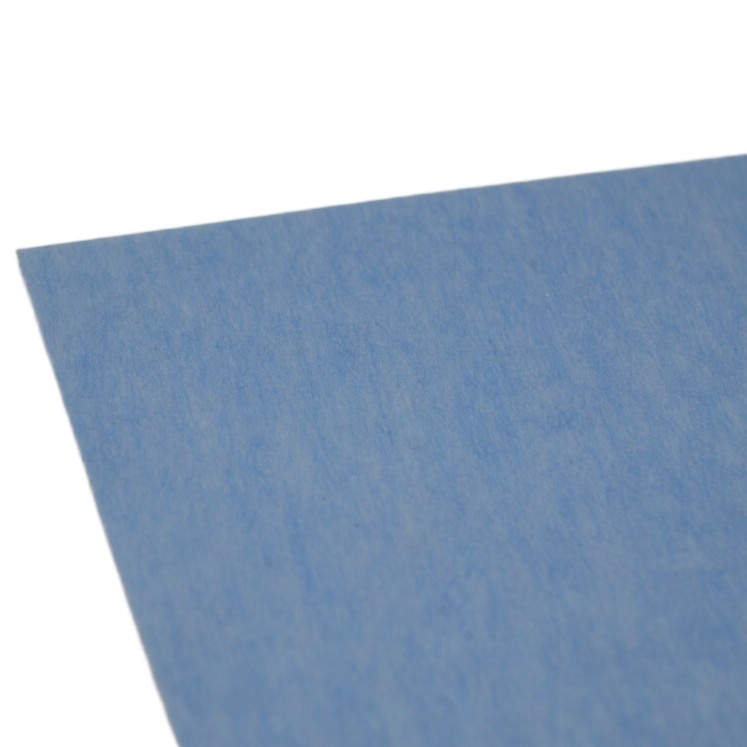

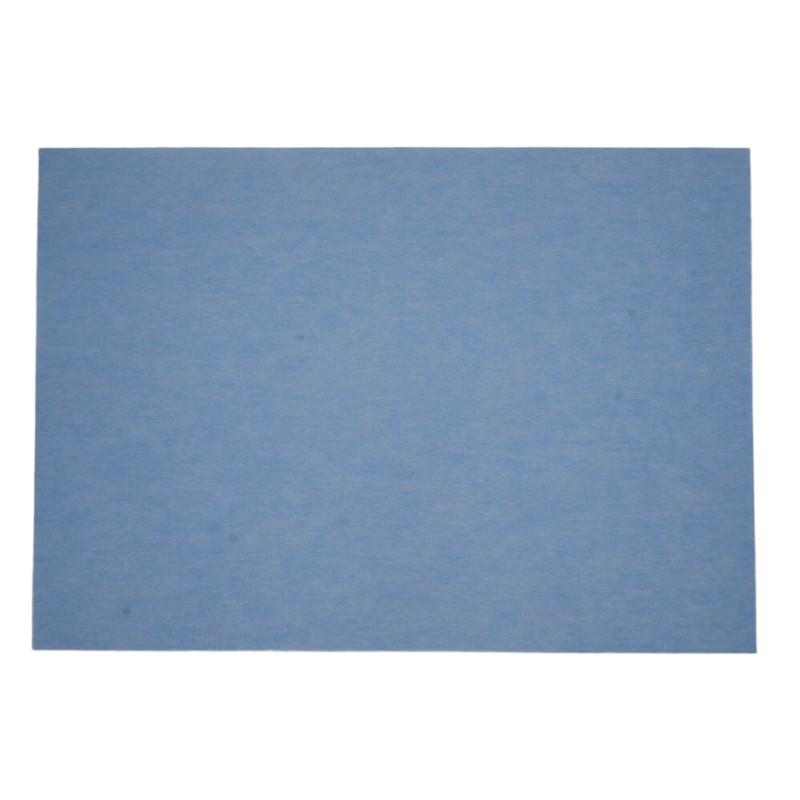

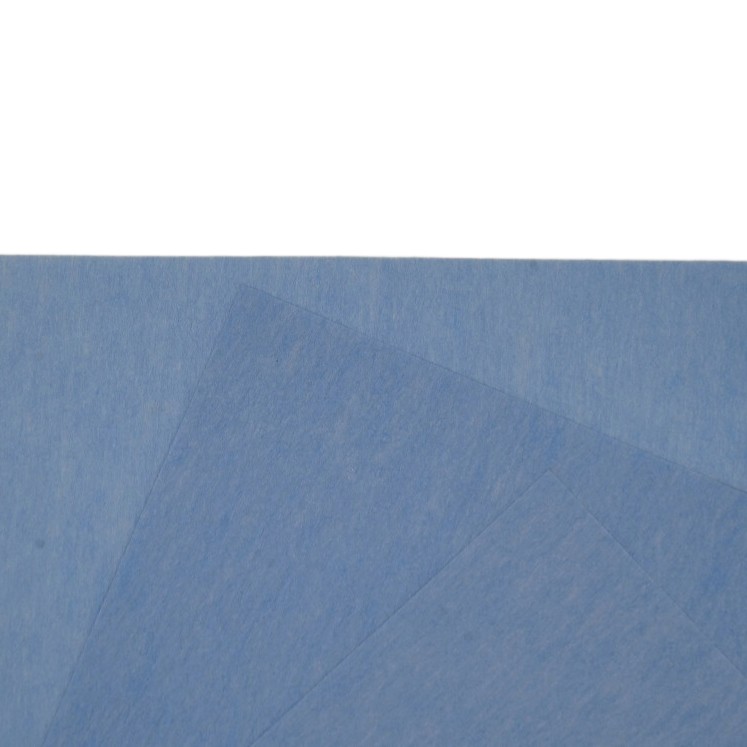

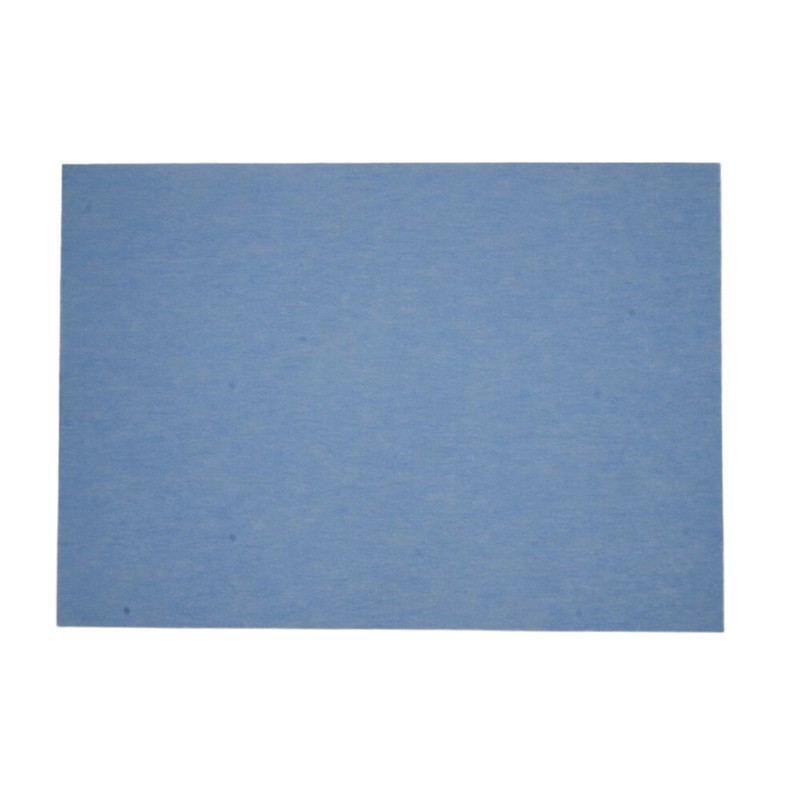

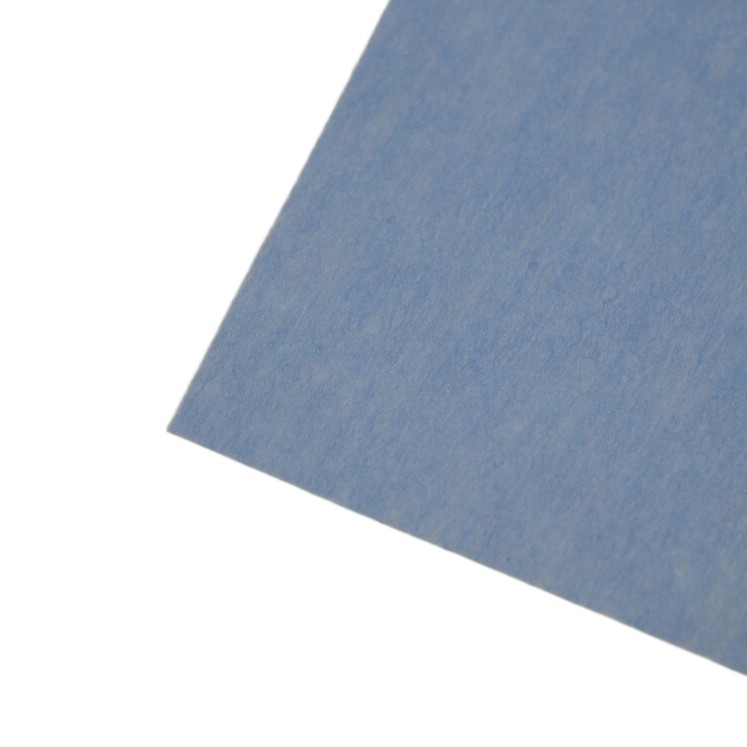

Hanyao is a supplier and manufacturer of F-Class Non-Woven Polyester Fabric With Polyester Film. It has two kinds, 6630DMD polyester film polyester fiber non-woven soft composite material, also known as B-grade DMD insulation paper, is a three-layer soft composite material made of polyester film polyester fiber non-woven fabric, with a heat resistance grade of B. 6641DMD polyester film polyester fiber non-woven soft composite material, also known as F-grade DMD insulation paper, is a three-layer composite material composed of polyester non-woven fabric and polyester film, bonded with F-grade resin.
| Property | Unit | Size | ||||||||||
| Nominal thickness | mm | 0.11 | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.30 | 0.35 | 0.40 | 0.45 | |
| Thickness and deviation | mm | ±0.015 | ±0.02 | ±0.025 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.035 | ±0.040 | ±0.045 | |
| Density | g/㎡ | 100±15 | 140±20 | 190±28 | 220±33 | 260±39 | 300±45 | 350±52 | 425±63 | 500±75 | 560±84 | |
| Tensile strength | MD no bending | N/10mm | ≥50 | ≥80 | ≥120 | ≥140 | ≥180 | ≥200 | ≥270 | ≥320 | ≥340 | ≥370 |
| MD bending | ≥50 | ≥80 | ≥105 | ≥120 | ≥150 | ≥170 | ≥200 | ≥300 | ≥320 | ≥350 | ||
| TD no bending | ≥50 | ≥80 | ≥105 | ≥120 | ≥150 | ≥170 | ≥200 | ≥300 | ≥320 | ≥350 | ||
| TD bending | ≥40 | ≥70 | ≥90 | ≥100 | ≥120 | ≥130 | ≥150 | ≥200 | ≥220 | ≥250 | ||
| Elongation | MD no bending | ％ | ≥15 | ≥5 | ≥5 | |||||||
| MD bending | ≥10 | ≥5 | ≥3 | |||||||||
| TD no bending | ≥20 | ≥5 | ≥5 | |||||||||
| TD bending | ≥10 | ≥5 | ≥2 | |||||||||
| Electrical strength | In aire | KV | ≥4 | ≥6 | ≥7 | ≥9 | ≥10 | ≥12 | ≥15 | ≥18 | ≥20 | ≥22 |
| Normal adhesion | － | No delamination, bubbles or other defects | ||||||||||
| Hot adhesion（155±2℃ 10 min） | － | No delamination, no bubbles, no glue flow | ||||||||||
| Temperature index B | ℃ | ≥130 | ||||||||||
| Temperature index F | ℃ | ≥155 | ||||||||||
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.This F-Class Non-Woven Polyester Fabric With Polyester Film has good mechanical strength and tearing strength,because polyester film has a excellent tensile strength,and non-woven fabric has a good tear strength.
2.It has an excellent dielectric strength to prevent.
3.It can withstand temperatures up to Thermal class B(130℃) and F(155℃).
4.Our product has good moisture resistance, because polyester film minimizes moisture absorption, maintain a good insulation property even in a humid environment.
5.It can be used as slot insulation, inter-turn and inter-layer insulation, and liner insulation core for motors, transformers, and mutual inductors.
