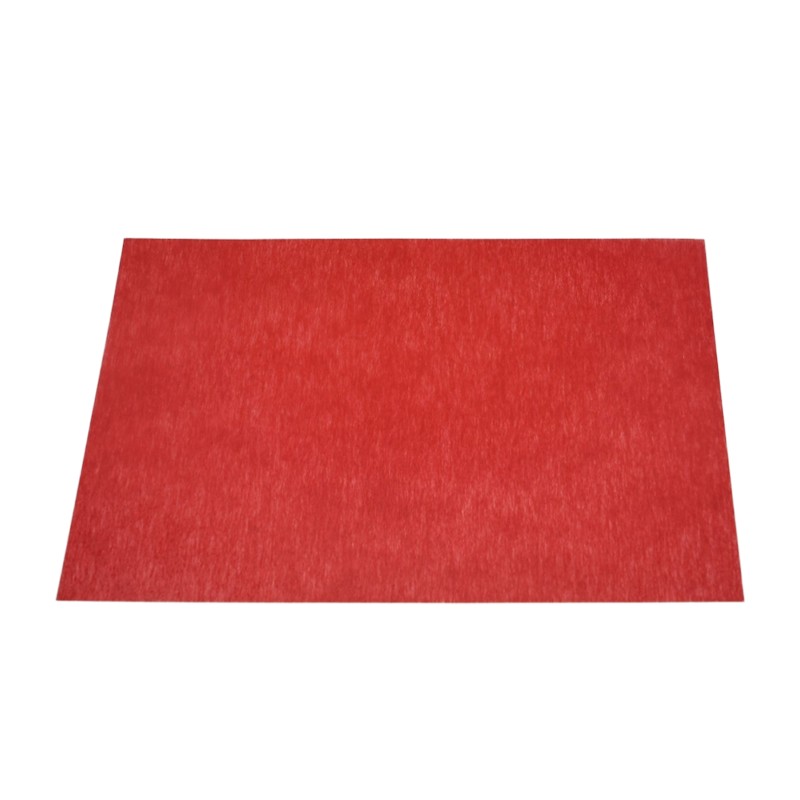

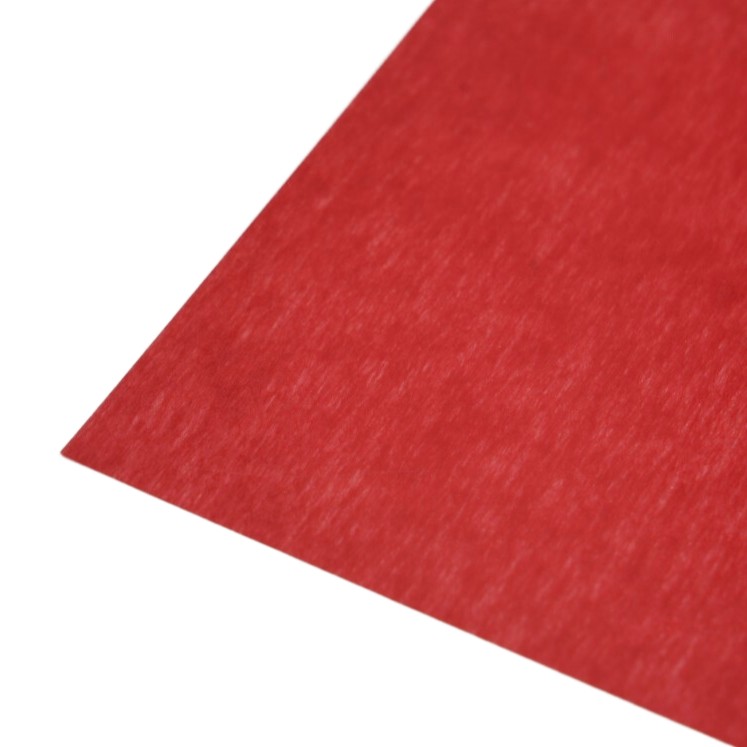

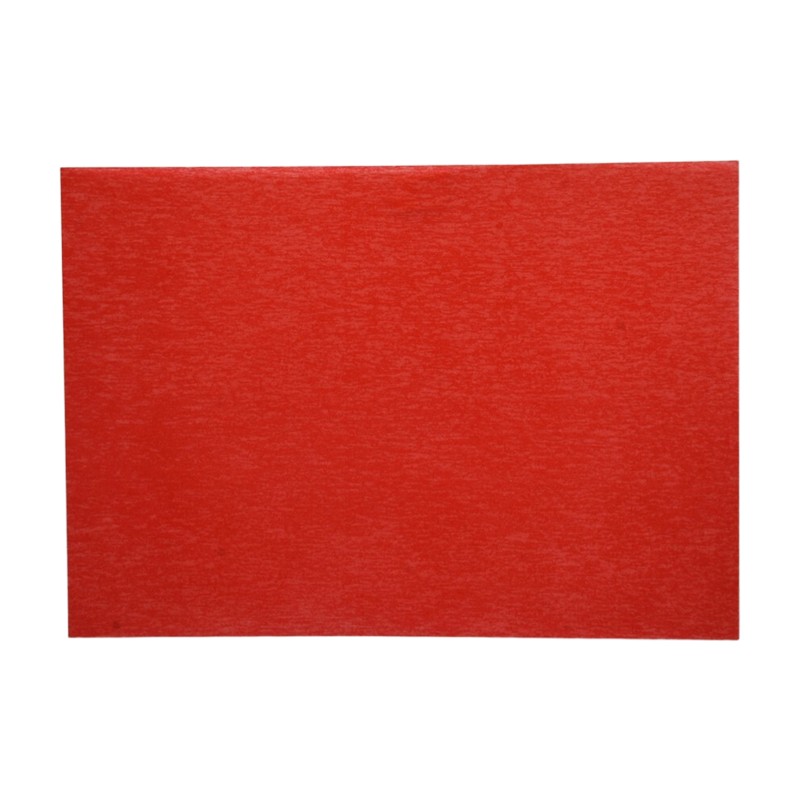

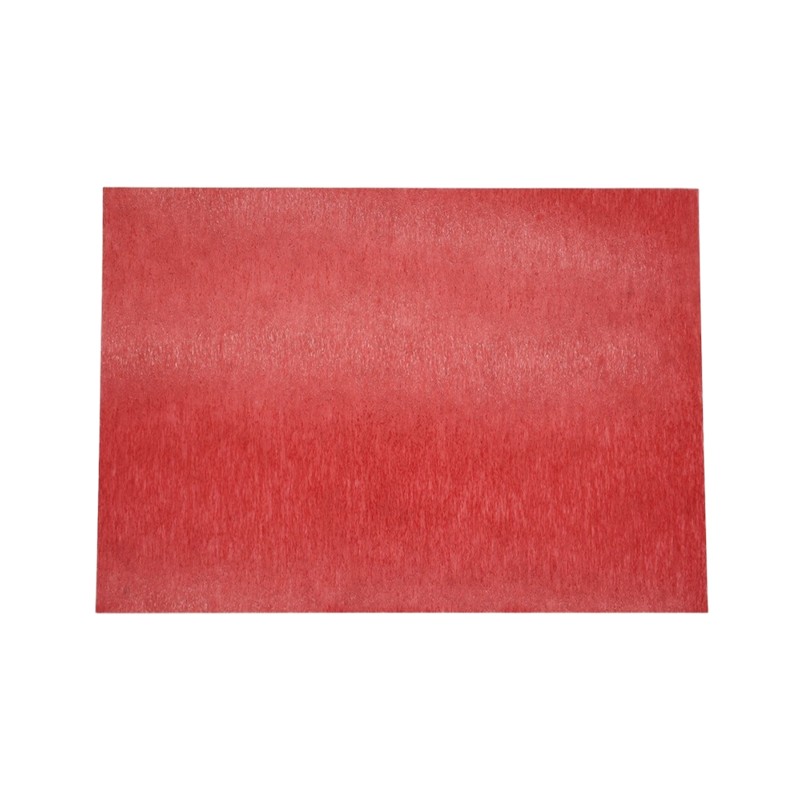

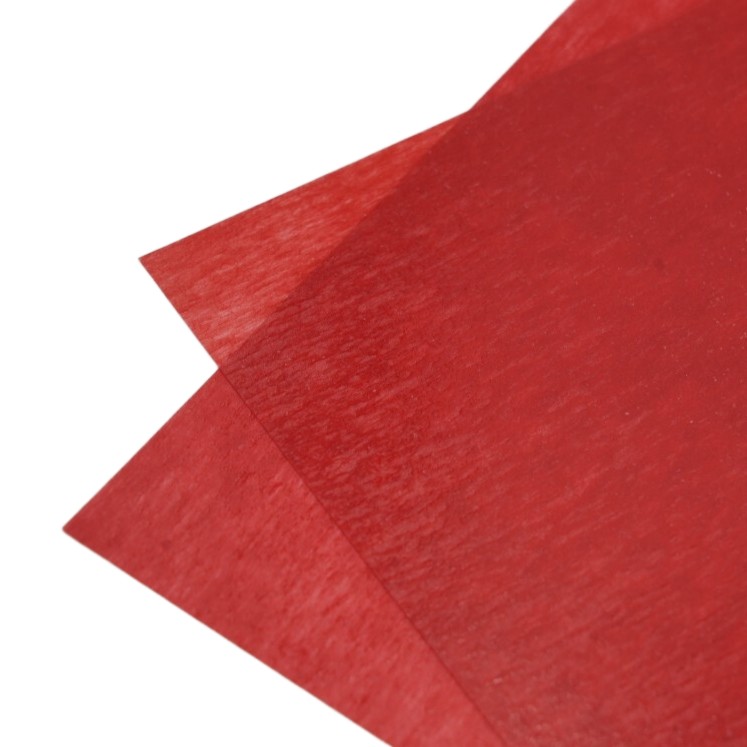

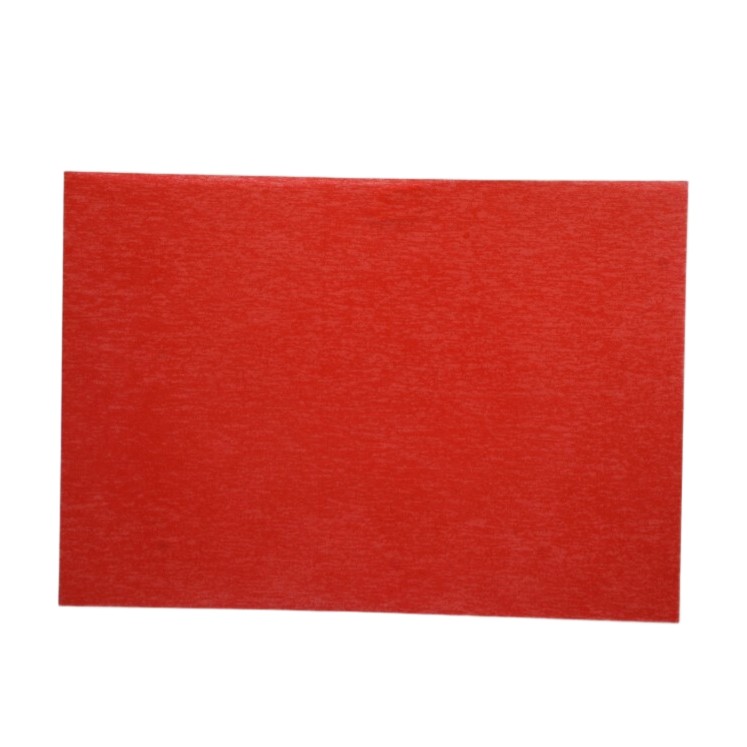

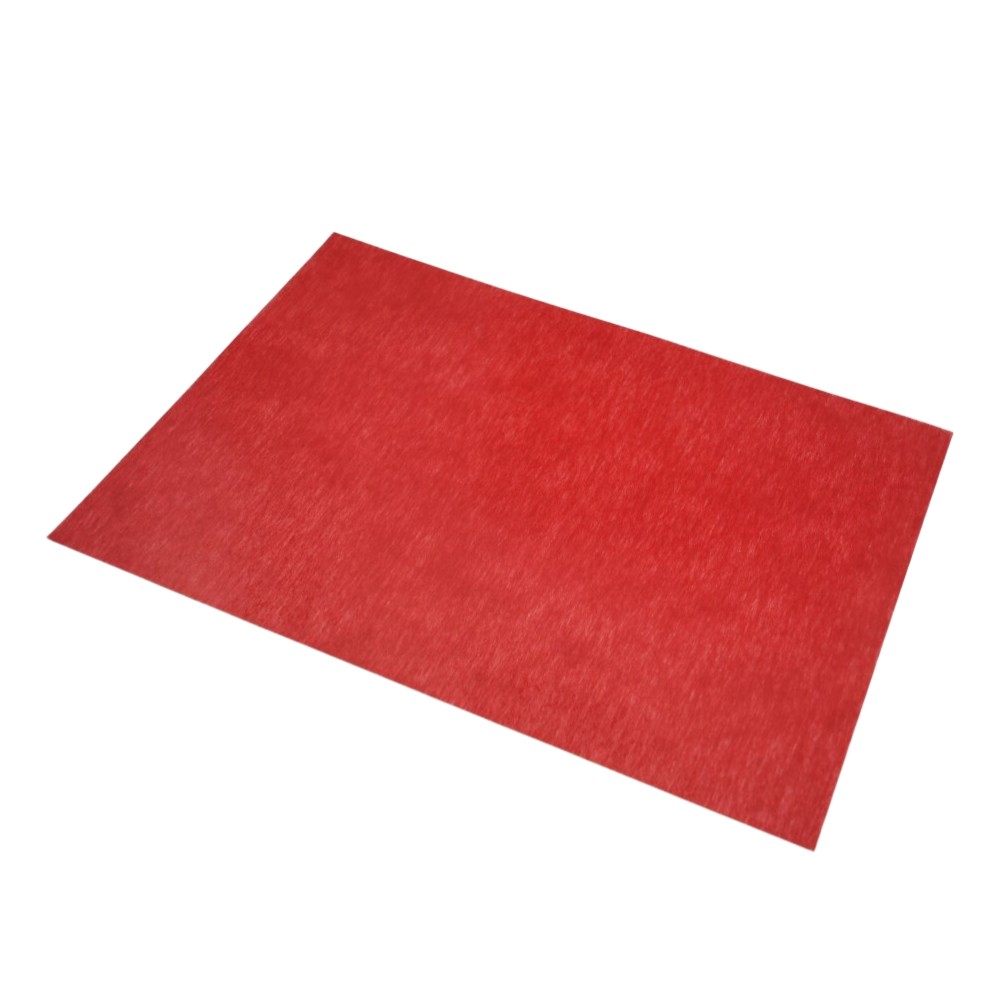

China Epoxy Resin Prepreg DMD is a flagship product from Hanyao, with good quality and competitive price. It is made from DMD impregnated with heat-resistant epoxy resin. DMD is a composite insulation material made from polyester film laminated with two layers of polyester no-woven fabric. Firstly the DMD material will be totally impregnated with epoxy resin then it will be baked to solidify the resin, forming into a stable insulation material. When heated to a certain temperature, it will adhere firmly to copper or aluminium foil and make it a solid insulation system.
| Item | Unit | Size | ||||||
| Nominal thickness | mm | 0.12 | 0.15 | 0.18 | 0.20 | 0.25 | 0.40 | 0.50 |
| Thickness and deviation | mm | ±0.015 | ±0.02 | ±0.03 | ±0.04 | |||
| Gram weight per square meter | g/m² | 145±15 | 163±20 | 200±28 | 235±33 | 305±45 | 470±70 | 605±84 |
| Soluble resin content | g/m² | ≥45 | ||||||
| Breakdown voltage | kV | ≥5.5 | ≥7.0 | ≥7.0 | ≥8.0 | ≥8.0 | ≥10 | ≥10 |
| Tensile strength No bending in the longitudinal direction | N/10mm | ≥55 | ≥70 | ≥70 | ≥80 | ≥80 | ≥100 | ≥100 |
| Temperature index | °C | 155 (JB/T6440) | ||||||
| Tensile shear strength | mpa | ≥3.0 | ||||||
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Epoxy Resin Prepreg DMD is F class insulation material which is able to withstand temperature up to 155℃.
2.It has excellent electrical property as well as great bonding strength.
3.It will be cured under minimum temperature 120℃ for 6 hours or 120℃for 2 hours at 155℃, or 1.5 hours at 160℃.
4.It is mainly used in dry-type transformer low-voltage coil interlayer insulation, F-class motor slot insulation and phase insulation.
