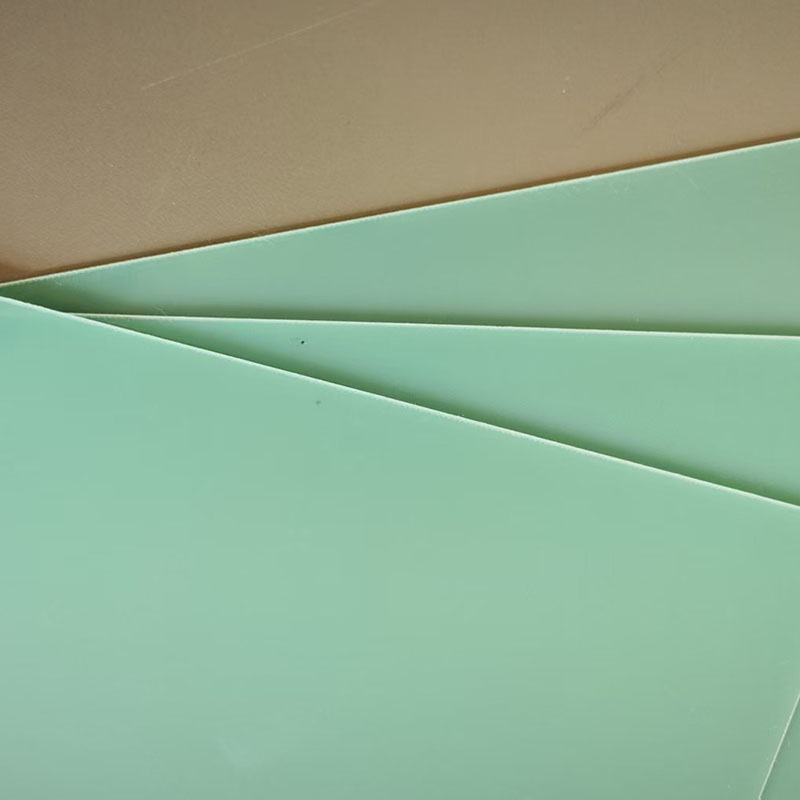

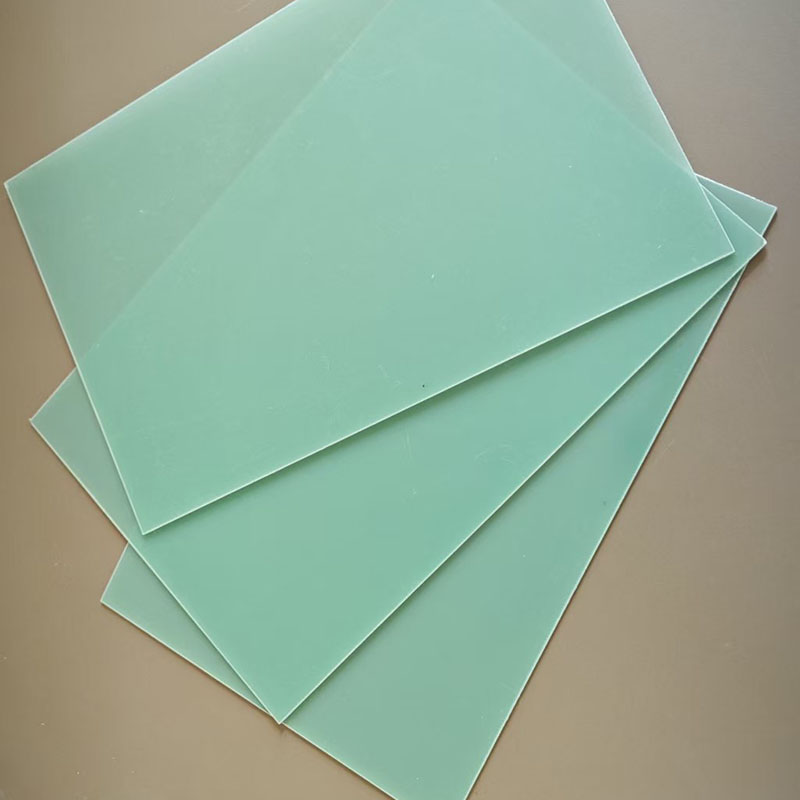

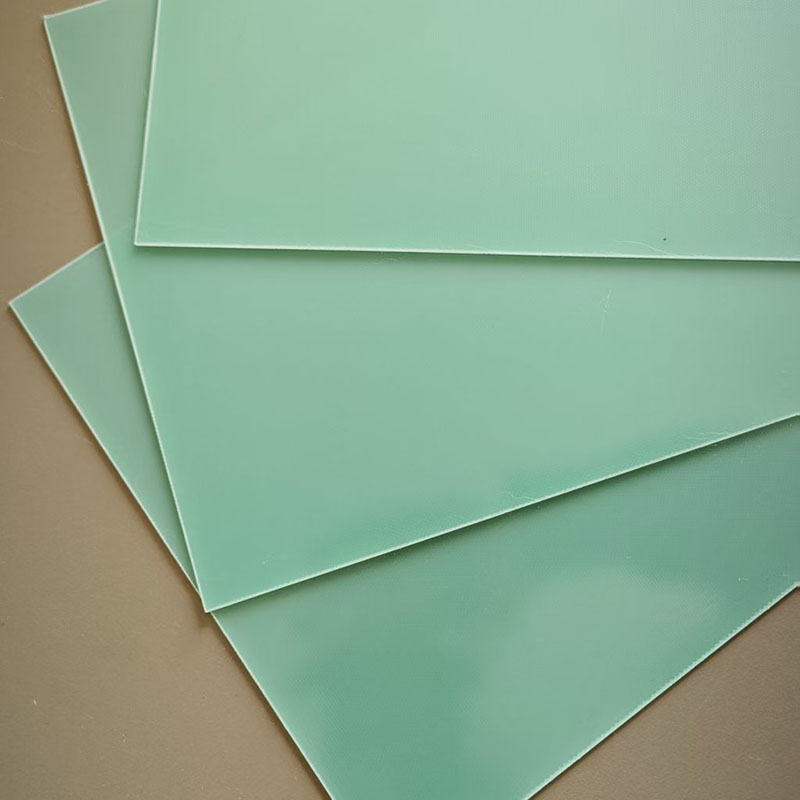

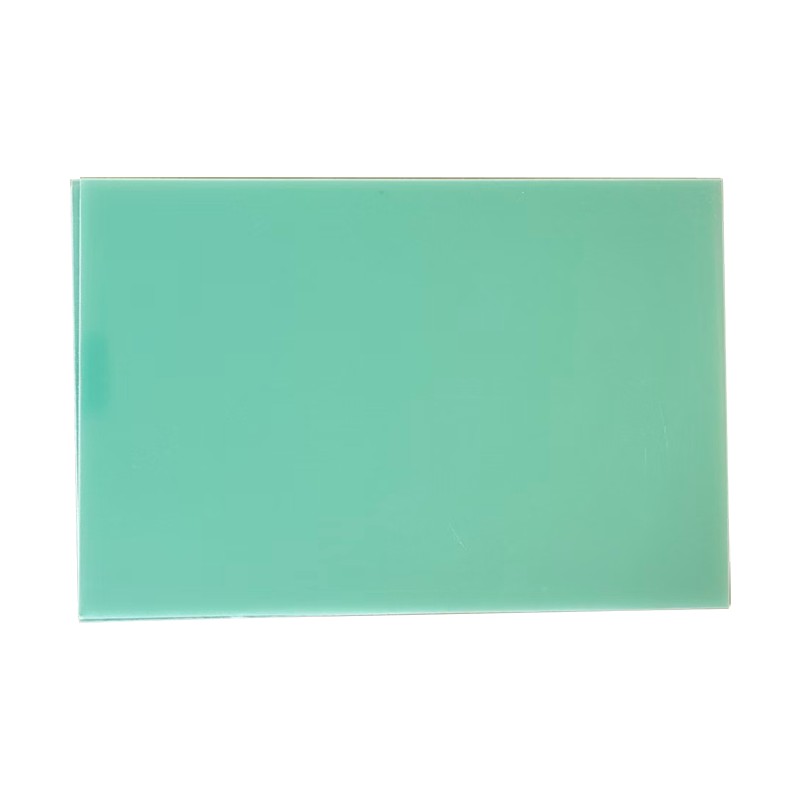

Electrical Insulation FR4 Epoxy Fiberglass Sheet provided by Hanyao factory is a composite laminate material made by impregnating electronic-grade glass fiber cloth (E-Glass) with epoxy resin as an adhesive and curing it by hot pressing.It is typically translucent to opaque green (the color of flame-retardant epoxy resin), but it also comes in yellow, blue, white, and other colors. The surface is smooth.FR4 epoxy fiberglass board has excellent mechanical properties, dielectric properties and thermal stability.
Fiberglass cloth gives it high mechanical strength, making it resistant to bending and deformation, and providing excellent support and fixation for electronic components. Its dimensional changes are minimal under various environmental conditions (such as variations in temperature and humidity), ensuring circuit accuracy.FR-4 epoxy board is a high-strength, highly insulating, flame-retardant, heat-resistant, easy-to-process, and low-cost composite engineering material. It is the primary material used in the manufacture of rigid printed circuit boards, supporting the entire modern electronics industry.
| Item | Parameter name | Requirements | Test Method |
| Mechanical properties | Density | 1.80 - 1.90 g/cm³ | - |
| Bending strength | ≥ 400 MPa | IPC-4101 / GB/T 4722 | |
| Tensile strength | ≥ 300 MPa | IPC-4101 | |
| Elastic modulus | ≥ 20 GPa | - | |
| Poisson's ratio | ~0.18 | - | |
| Thermal properties | Long-term heat resistance | 130 - 150 °C | - |
| heat distortion temperature | ≥ 130 °C | ASTM D648 | |
| Glass transition temperature | 130 - 180 °C (Tg)Mid Tg: 135-150°CHigh Tg: 170-180°C | DSC / TMA | |
| Thermal decomposition Temperature | > 320 °C (Td5%) | TGA | |
| Linear expansion coefficient | 13 - 18 ppm/°C (X-Y axis)60 - 80 ppm/°C (Z axis | IPC-TM-650 | |
| Thermal conductivity | 0.2 - 0.3 W/(m·K) | ASTM C177 | |
| Electrical properties | Dielectric strength | ≥ 40 kV/mm | ASTM D149 |
| Volume resistivity | ≥ 10¹² MΩ·cm | ASTM D257 | |
| Surface resistivity | ≥ 10¹² MΩ·cm | ASTM D257 | |
| Relative permittivity | 4.2 - 4.8 (1MHz / 1GHz) | ASTM D150 | |
| Dielectric loss factor | 0.015 - 0.025 (1MHz / 1GHz) | ASTM D150 | |
| Flame retardancy and other properties | Flame retardant grade | UL 94 V-0 |
|
| Hygroscopicity | 0.1% - 0.2% (Electrical properties and Tg decrease after water absorption.) | ASTM D570 | |
| Chemical resistance | Excellent |
|
|
| Processability | Excellent |
|
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Electrical Insulation FR4 Epoxy Fiberglass Sheet is able to withstand temperature upto 130℃.
2.Its flame resistance is UL 94-V0.
3.It has excellent mechanical strength, and fiberglass cloth provides extremely high strength and dimensional stability, making it suitable as a structural and support component.
4.It has high insulation resistance, high volume resistivity and high surface resistivity, which can effectively isolate current and prevent short circuits.
5.It is used as a distribution cabinet, the switchgear includes busbar insulation partitions, supports, arc-extinguishing grids,or insulating partitions, frames and supports in transformers
