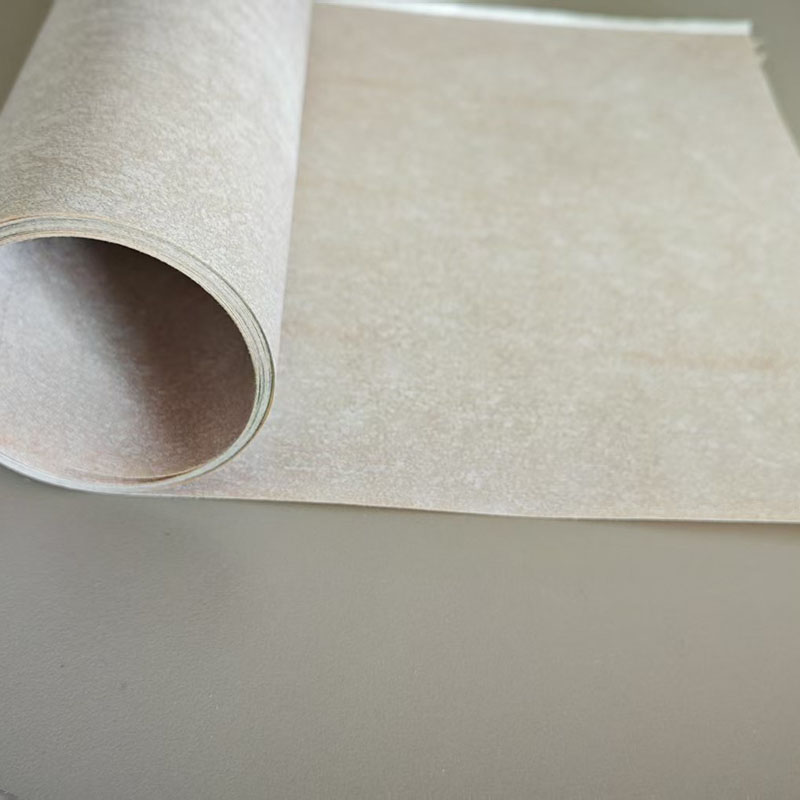

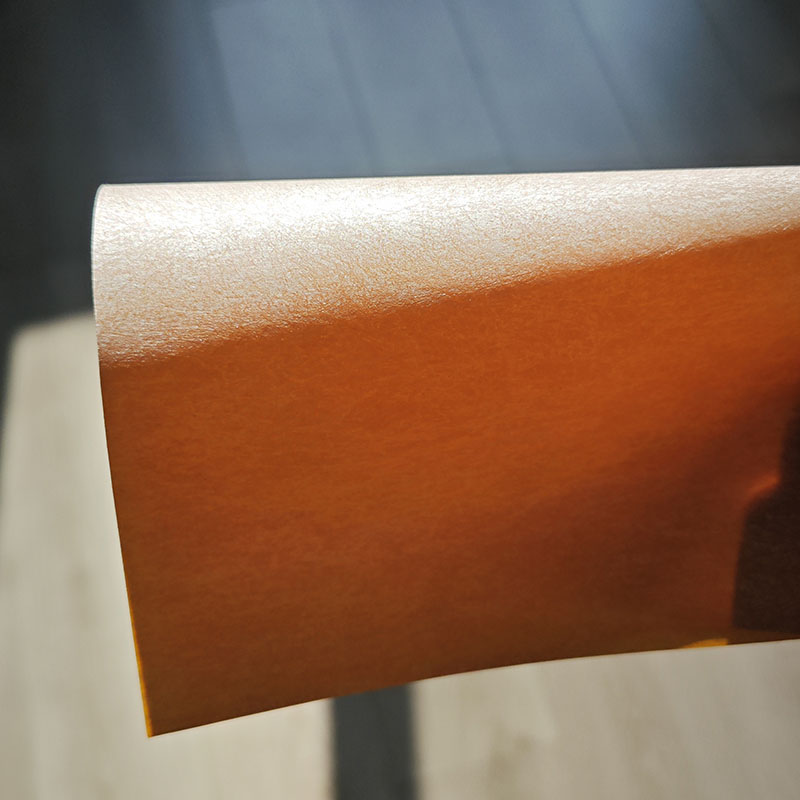

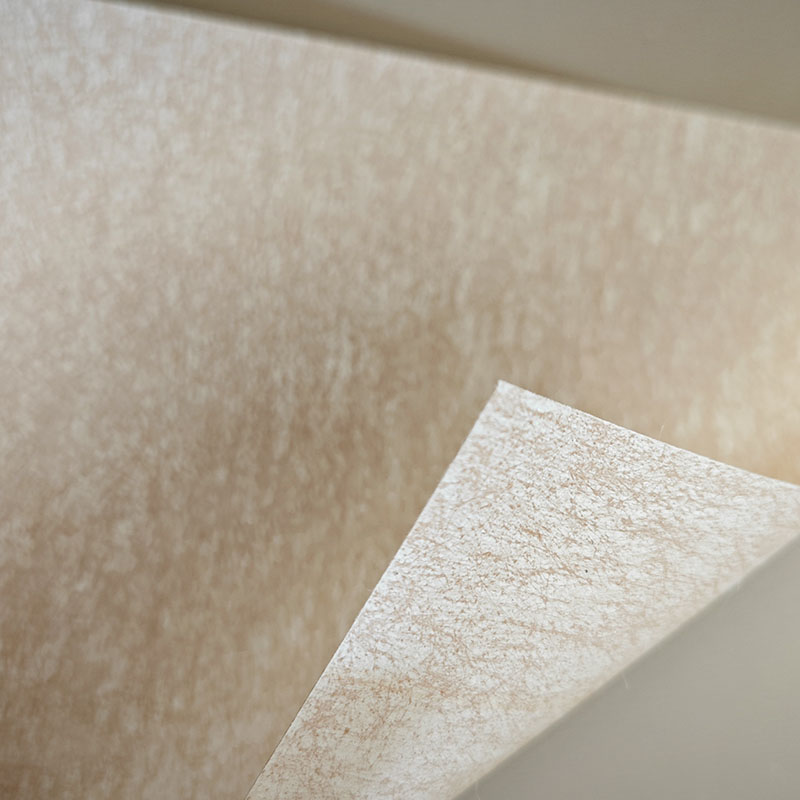

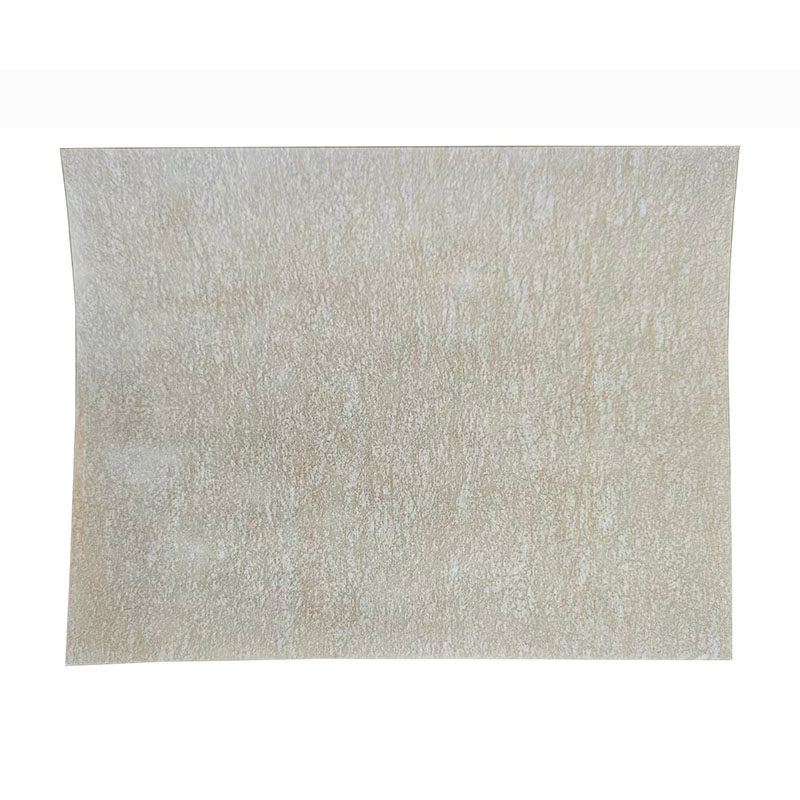

Aramid Paper Laminated With Polyimide Film AHA provided by Hanyao factory is a three layers flexible insulation material, which is made from two layers of aramid paper laminated with one layer of polyimide film in the middle. This structure ensures the excellent mechanical and electrical strength of the product. We might not be able to offer the lowest prices in the market but our price-performance ratio must be good. Free samples can be sent for your evaluation. Welcome to contact us and discuss your product needs.
| Item | Unit | Size | |||
| Nominal thickness | mm | 0.13 | 0.18 | 0.26 | |
| Thickness and deviation | mm | ±0.015 | ±0.02 | ±0.04 | |
| Thickness of polyimide film | μm | 50 | 75 | 150 | |
| Thickness of Aramid paper | μm | 40 | 50 | 50 | |
| Tensile strength | MD | N/10mm | ≥95 | ≥140 | ≥200 |
| TD | ≥65 | ≥90 | ≥120 | ||
| Elogation | MD | ％ | ≥10 | ||
| TD | ≥8 | ||||
| Breakdown voltage | In air | KV | ≥6.5 | ≥8 | ≥9 |
| Affected by heat（200℃±2℃10min） | No delamination, blistering or other defects | ||||
| Long-term heat resistance (temperature index)TI | ≥180℃ | ||||
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Aramid Paper Laminated With Polyimide Film AHA is H class insulation material which is able to withstand temperature up to 180℃.
2.It has excellent electrical property as well as great mechanical strength.
3.The product has a shelf life of 12 months when stored at room temperature.
4. It is suitable for slot insulation, phase insulation and turn-to-turn insulation of H-class and 200-class motors and electrical appliances.
