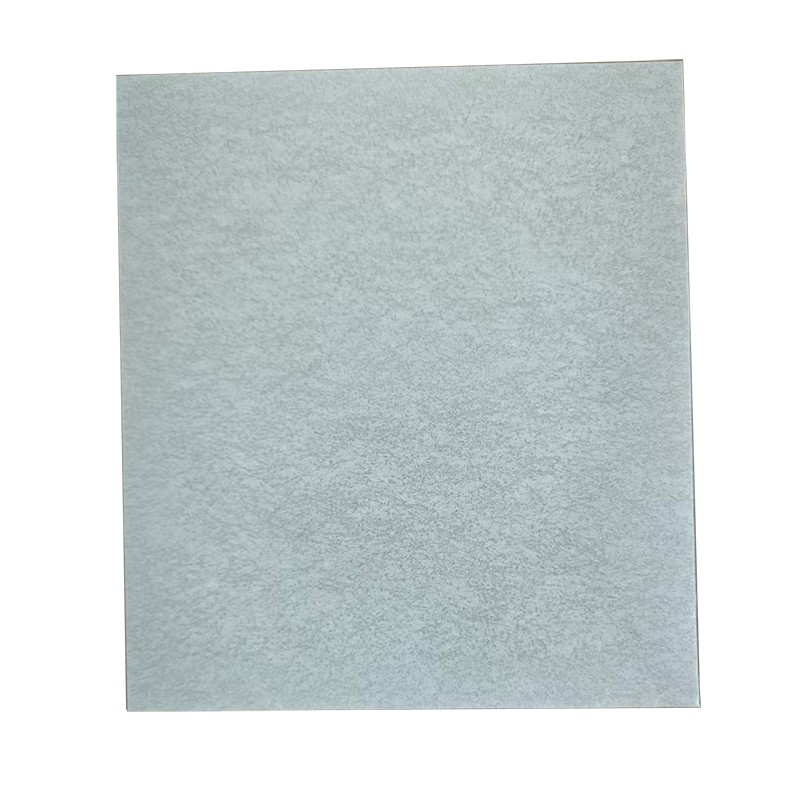

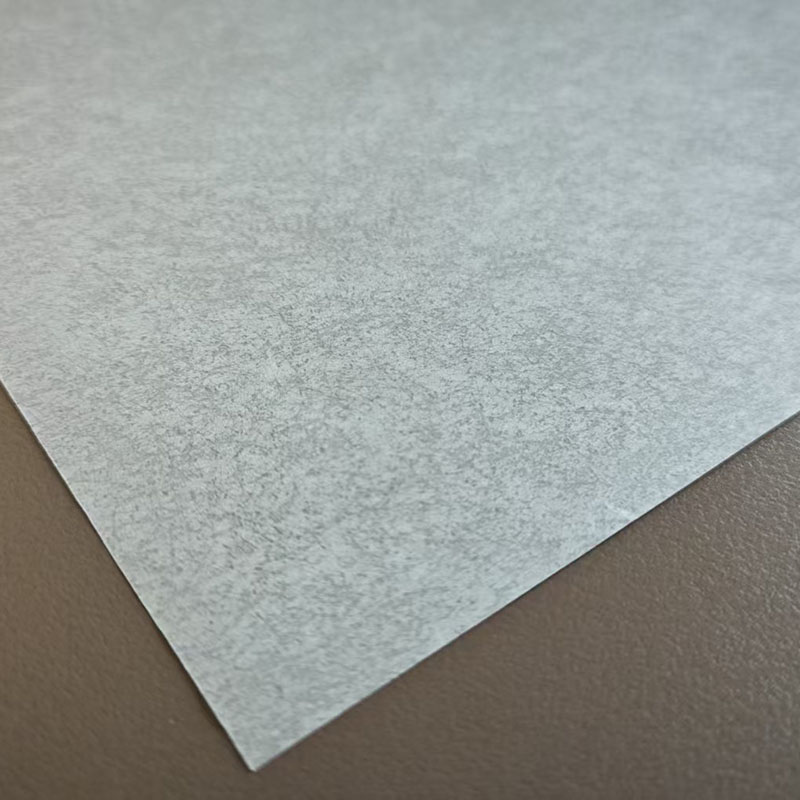

Hanyao quality Electrical insulation aramid paper is not the ordinary paper we use for writing or printing in our daily lives, but a high-tech material that combines the thinness and flexibility of paper with the high strength, high temperature resistance, and flame retardancy of engineering plastics and even metals.a calendered paper, offers excellent dielectric strength, mechanical properties, flexibility and resilience. There are 9 thicknesses, from 2 mil to 30 mil (0.05mm to 0.76mm). It is used in almost every known electrical sheet insulation applications.
It has high temperature resistance and can offer short-term overloading.Its most outstanding characteristic is that it can withstand long-term operating temperatures above 200°C, and can withstand short-term high temperatures of 300-400°C without melting or decomposing. It also self-extinguishes after being removed from an open flame and does not support combustion.
Simply put, aramid paper is a high-performance special paper-based material made from aramid fibers through a special papermaking process, possessing excellent properties such as high temperature resistance, flame retardancy, high strength, and insulation.
| Item | Value | Test method |
| Weight per sqm | 30 - 400 g/m² | ISO 536 |
| Thickness | 0.05 - 0.50 mm | ISO 534 |
| Density | 0.7 - 1.0 g/cm³ | - |
| Tensile strength（MD/CD） | High strength type：> 150 N/cm | ASTM D828 |
| Standard type：80 - 120 N/cm | ||
| Tear strength（MD/CD） | High standard type：> 1000 mN | ASTM D689 |
| Standard type：500 - 800 mN | ||
| Elongation at break | 5% - 15% | ASTM D828 |
| Breakdown voltage（in air） | 10 - 40 kV/mm | IEC 60243-1 |
| Dielectric constant（1MHz） | 1.8 - 2.5 | IEC 60250 |
| Dielectric loss factor（1MHz） | 0.003 - 0.010 | IEC 60250 |
| Long-term working temperature | 200 - 250 °C | - |
| Short-term peak temperature resistance | > 400 °C | - |
| Flame retardancy | V-0（UL 94） | UL 94 |
| Heat shrinkage （200°C, 30min） | < 1% | Customized |
| Acid resistance | excellent | - |
| Alkali resistance | good | - |
| Resistance to organic solvents | excellent | - |
| Resistance to damp heat aging | excellent | - |
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Electrical Insulation Aramid Paper is able to withstand temperature upto 220℃,It has high temperature resistance and flame retardancy and Inherently flame retardant, it does not melt or burn, and remains stable within a temperature range of -196℃ to 560℃.
2.It has high strength and lightweight with low density but high strength
3.It has excellent electrical insulation properties and is resistant to acids, alkalis, organic solvents, and radiation.
4.It has extremely low coefficient of thermal expansion, suitable for precision components
5.It is often used in wind turbines, high-efficiency motors, traction motors (such as high-speed rail and subway), explosion-proof motors, etc., as an insulating layer between the coil and the iron core.
