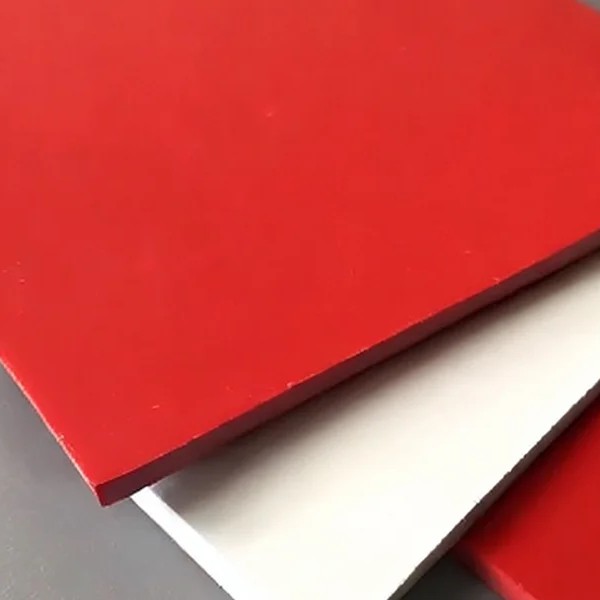

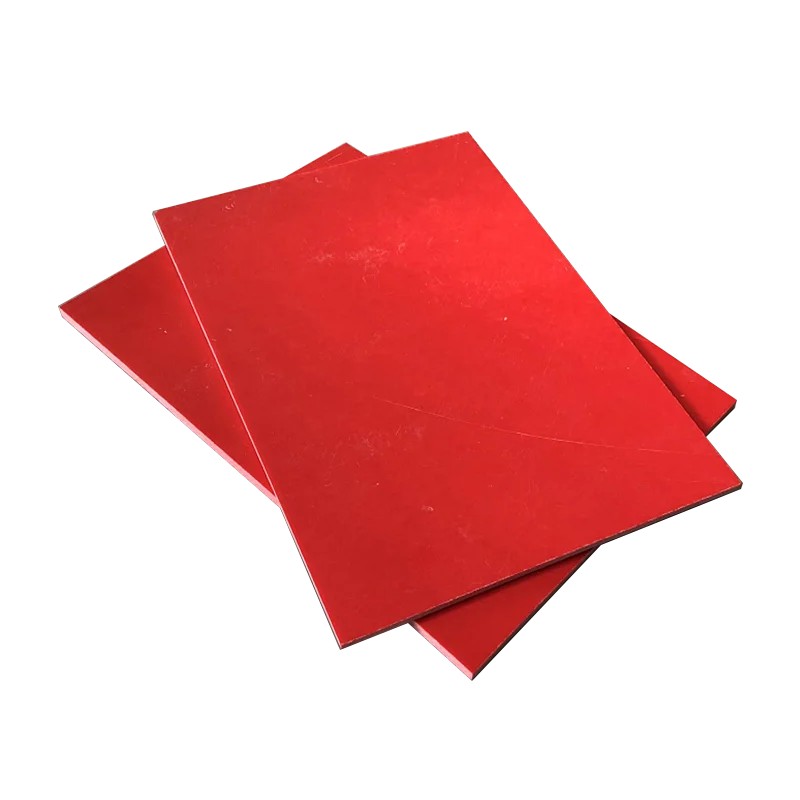

GPO-3 sheet from Hanyao factory is made from unsaturated polyester resin, instead of the epoxy resin used in G10/G11, results in lower cost and better electrical and mechanical properties.

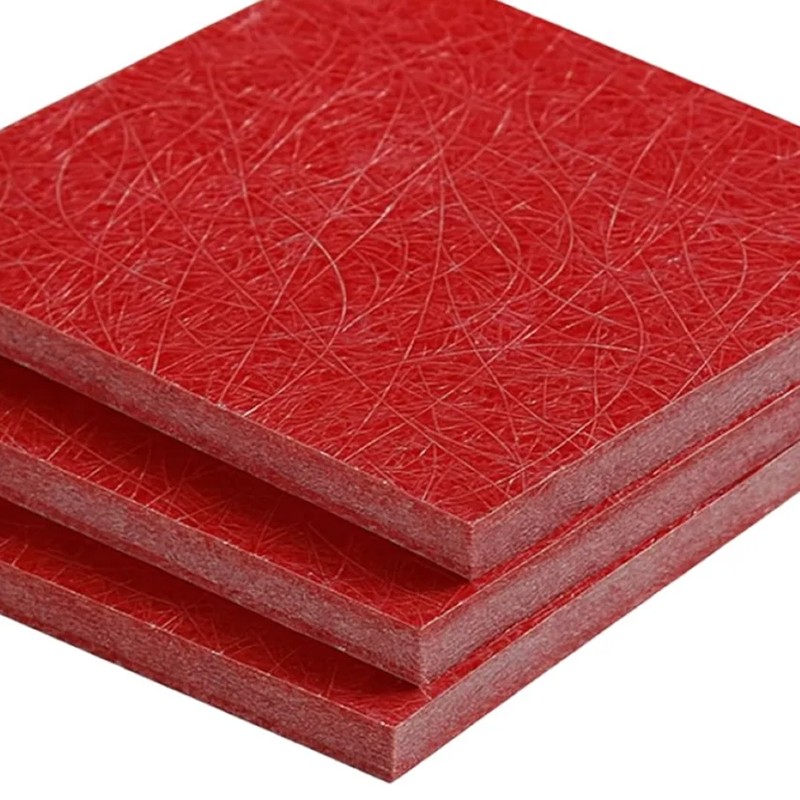

Alkali-free glass fiber or glass fiber mat is typically used to provide mechanical strength.GPO-3 was designed as a high-performance, flame-retardant, halogen-free, and self-extinguishing material. It meets multiple international safety standards.Its most prominent advantage is that it usually reaches the UL94 V-0 flame retardant rating and is self-extinguishing, meaning it will extinguish itself after the fire source is removed.
Under the action of an electric arc, its carbonization path forms an arc track instead of continuous conductivity, which improves safety to some extent.Unlike some materials that achieve flame retardancy by adding halogens (such as bromine), GPO-3 achieves flame retardancy through inorganic fillers. This means that it does not release toxic and corrosive hydrogen halide gases during combustion, making it more environmentally friendly and safer.
| Items | Test Method | Unit | Typical value | |
| physical properties | color |
|
---- | Red/White/Brown/Grey |
| Visual inspection | ||||
| Specific Gravity | IEC60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| mechanical properties | Tensile Strength | IEC60893-2:2003 | Mpa | ≥130 |
| Compressive Strength | IEC60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC60893-2:2003 | ≥180 | ||
| Impact strength | IEC60893-2:2003 | KJ/m2 | ≥60 | |
| electrical properties | Volumetric Resistivity | IEC60093:1980 | Ω.m | ≥1.0×1010 |
| Surface Resistivity | IEC60093:1980 | Ω | ≥1.0×1012 | |
| Electric Strength | IEC60893-2:2003 | KV/mm | ≥12 | |
| Breakdown Voltage | IEC60893-2:2003 | KV/25mm | ≥80 | |
| Arc Resistance | IEC61621：1997 | sec | ≥180 | |
| PTI Proof Tracking lndex PTI | IEC60893-2:2003 | -- | ≥600 | |
| Dielectric constant | IEC60893-2:2003 | -- | 4.0-5.0 | |
| Tg Dissipation Factor | IEC60893-2:2003 | -- | ≤0.03 | |
| Thermal properties | Coefficient of temperature expansion | ASTME 228-11 | 1/K | ≤2×10-5 |
| Temperature index | IEC60085：2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen index | ISO 4589-2：1996 | %O2 | ≥30 |
| Flame Resistance | IEC60893-2:2003 | -- | V-0 | |
| Toxicant(Emission halogen etc) | E622 | -- | low | |
| Other properties | The Anti microbial properties of bacteria | G21-G22 | --- | good |
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.This GPO-3 sheet is able to withstand temperature upto 155℃.
2.The arc resistance is over 180 seconds.
3.Flame retardancy is UL 94 V-0 rating.
4.It is low-smoke, halogen-free product.
5.It is used as a distribution cabinet, the switchgear includes busbar insulation partitions, supports, arc-extinguishing grids,or insulating partitions, frames and supports in transformers
