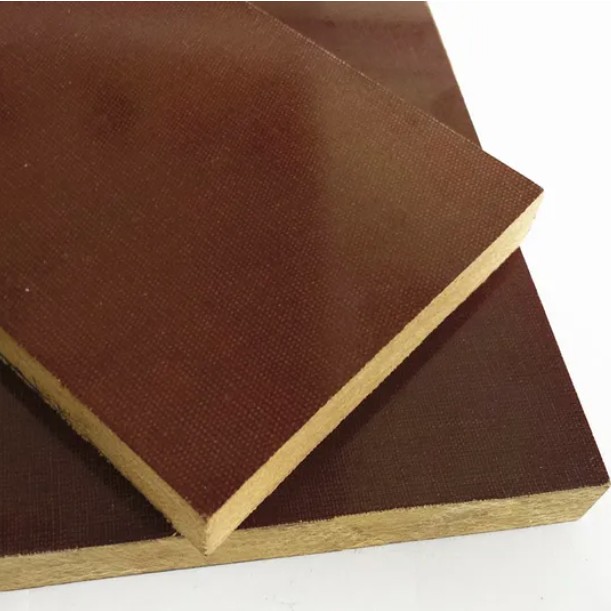

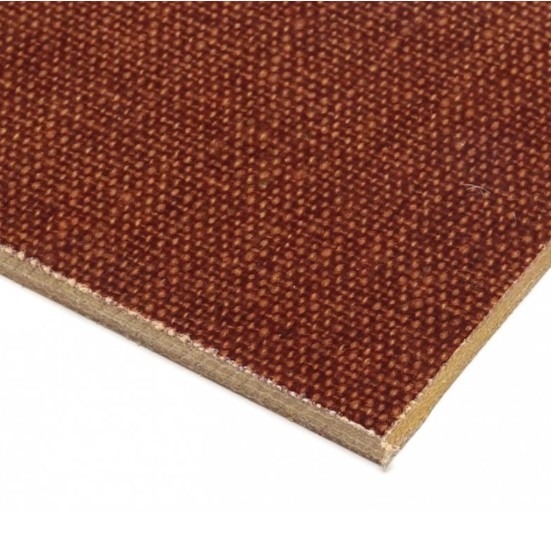

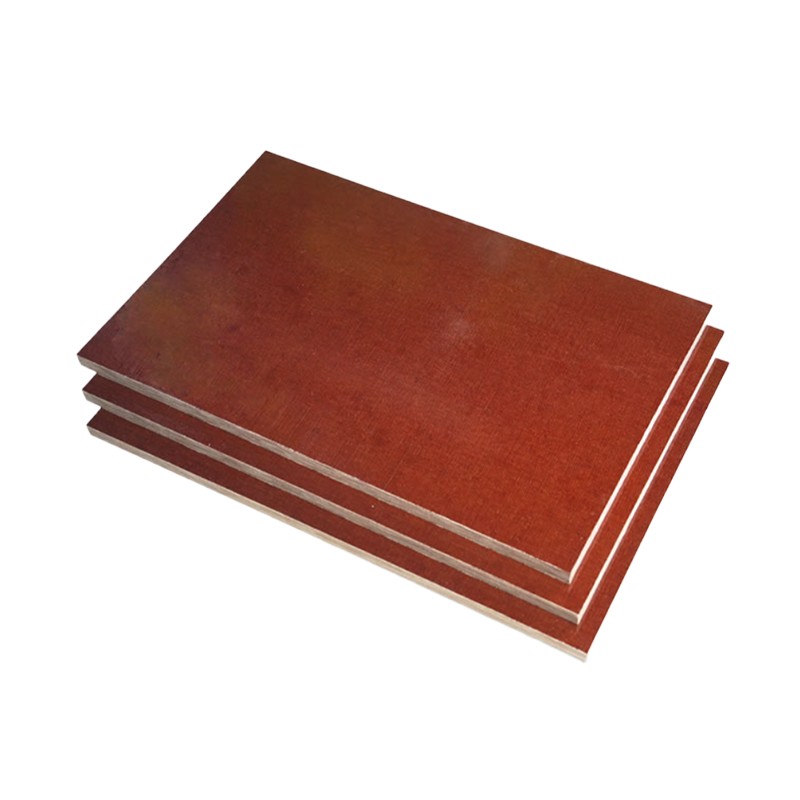

Hanyao quality Phenolic Cotton Cloth Sheet uses cotton cloth (usually waste cotton lint, cotton yarn, or cotton canvas) as a reinforcing material. This gives it properties that are different from fiberglass boards.Phenolic resin is used as an adhesive. Cotton fabric is impregnated in phenolic resin and then cured and molded by heating and pressure.It is often referred to as "bakelite board" or "phenolic resin board".
In NEMA standards, it belongs to the XX and LE series.It is usually brown, black, or dark brown, with a smooth surface and a unique "warm" texture, unlike the "cold" glass texture of FR-4.It has excellent machinability, is easy to perform machining operations such as turning, milling, drilling, planing, and grinding, and causes minimal wear on cutting tools during machining.
The low cost of raw materials (cotton fabric and phenolic resin) and the mature manufacturing process make it very competitively priced.In summary, it is a low-cost, easy-to-process, and versatile industrial laminate that combines insulation and mechanical toughness. Its intended use is very clear: in applications where heat resistance, high-frequency electrical performance, and strength requirements are not high, it serves as a mass-producible and rapidly manufactured mechanical and insulating component.
| Item | Parameter name | Requirements | Test Method |
| Mechanical properties | Density | 1.30 - 1.40 g/cm³ | ASTM D792 |
| Tensile strength | 60 - 100 MPa | ASTM D638 | |
| Bending strength | 80 - 150 MPa | ASTM D790 | |
| Impact strength | .6 - 1.2 J/cm² | ASTM D256 | |
| Compressive strength | 150 - 250 MPa | ASTM D695 | |
| Rockwell hardness | M 100 - 115 | ASTM D785 | |
| Thermal properties | Long-term heat resistance | 90 - 105 °C | - |
| heat distortion temperature | 115 - 130 °C | ASTM D648 | |
| Flame retardant grade | UL 94 HB | UL 94 | |
| Linear expansion coefficient | 20 - 30 ppm/°C | ASTM D696 | |
| Thermal conductivity | 0.15 - 0.25 W/(m·K) | ASTM C177 | |
| Electrical properties | Dielectric strength | 10 - 20 kV/mm | ASTM D149 |
| Volume resistivity | 10⁹ - 10¹¹ Ω·cm | ASTM D257 | |
| Surface resistivity | 10¹⁰ - 10¹² Ω | ASTM D257 | |
| Relative permittivity | 4.5 - 6.0 (1MHz) | ASTM D150 | |
| Dielectric loss factor | 0.04 - 0.08 (1MHz) | ASTM D150 | |
| Chemical and environmental performance | Hygroscopicity | High 1.0 - 2.0%(24-hour soaking) | ASTM D570 |
| Chemical resistance | good |
|
|
| Acid/alkali resistance | Good to weak acids and weak bases, but strong acids and strong bases will corrode it. |
|
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.Phenolic Cotton Cloth Sheet is able to withstand temperature upto 120℃.
2.The raw materials (cotton fabric and phenolic resin) have low cost.
3.It has good electrical insulation properties
4.Its excellent machinability allows it to be machined into very complex mechanical parts.
5.It can be made into mechanical structural components, such as gears, bearings, and gaskets. It can also be used to make relay and switch bases and insulating supports, transformer end covers, and insulating blocks, etc.
