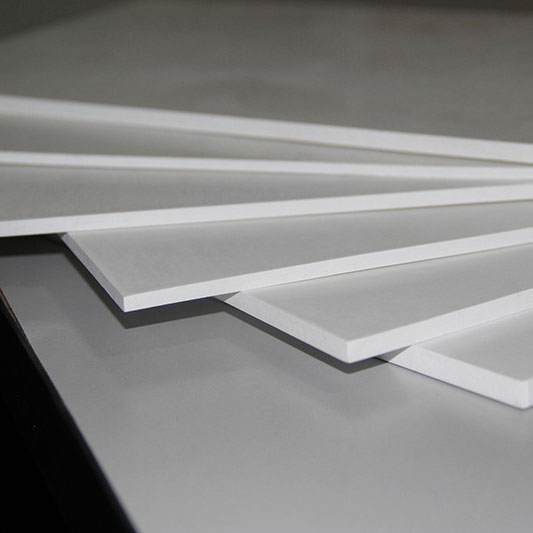

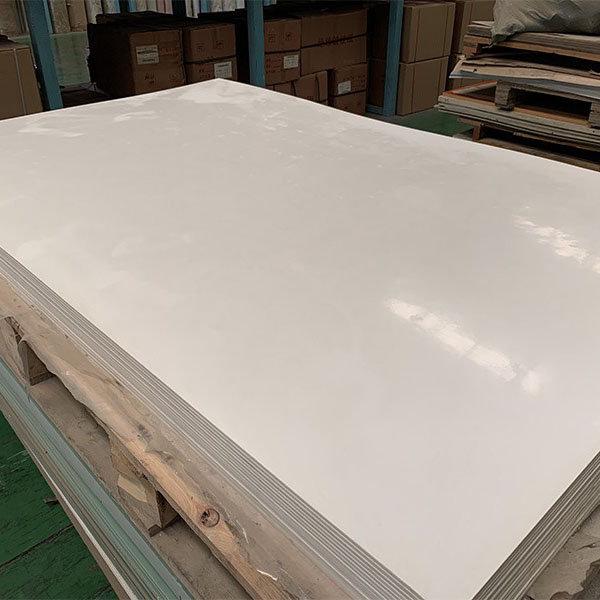

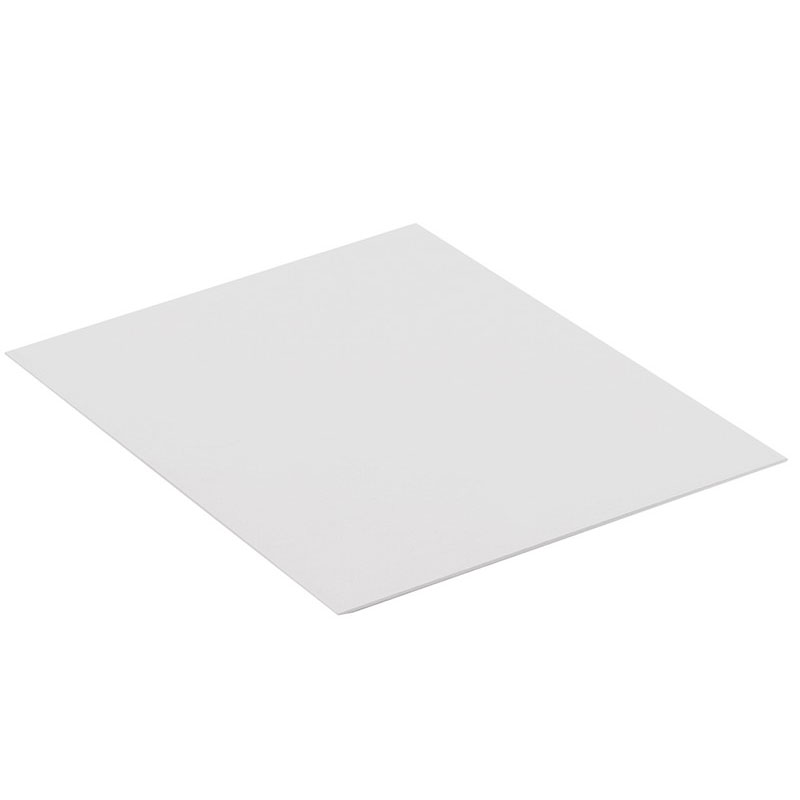

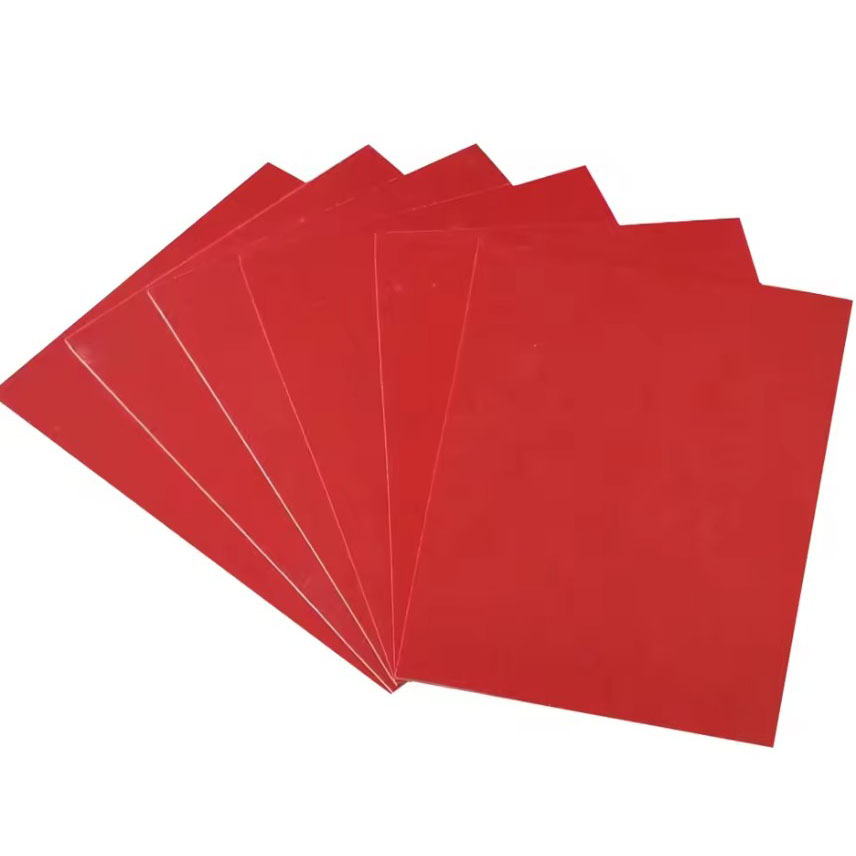

SMC insulation board from Hanyao manufacturer is made from unsaturated polyester resin, epoxy resin, or vinyl ester resin mixed with chopped glass fiber, and a large amount of calcium carbonate and aluminum hydroxide as fillers. Then, additives are mixed in. These raw materials are fully mixed in specialized equipment and can be quickly cured into hard plate-shaped or structural parts within minutes under high temperature and high pressure.
It possesses excellent electrical insulation, superior mechanical strength, and outstanding flame retardancy, easily achieving the highest flame retardancy rating of UL 94 V-0. Furthermore, it exhibits low smoke and non-toxicity, resistance to electric arc and tracking, and boasts excellent performance, making it ideal for use in high-voltage switchgear.However,it requires high mold costs, therefore it is not suitable for small-batch production.
| Item | Parameter name | Requirements | Test Method |
| Mechanical properties | Density | 1.75 - 1.95 g/cm³ | ASTM D792 |
| Tensile strength | 60 - 120 MPa | ASTM D638 | |
| Bending strength | 120 - 250 MPa | ASTM D790 | |
| Impact strength | 60 - 100 kJ/m² | ASTM D256 | |
| Flexural modulus | 8,000 - 12,000 MPa | ASTM D790 | |
| Thermal properties | Long-term heat resistance | 130 - 155 °C | - |
| heat distortion temperature | > 200 °C | ASTM D648 | |
| Flame retardant grade | UL 94 V-0 | UL 94 | |
| Linear expansion coefficient | 15 - 25 x 10⁻⁶/°C | ASTM D696 | |
| Electrical properties | Dielectric strength | ≥ 15 kV/mm | ASTM D149 |
| Volume resistivity | ≥ 10¹³ Ω·cm | ASTM D257 | |
| Surface resistivity | ≥ 10¹³ Ω | ASTM D257 | |
| Dielectric constant | 4.5 - 5.5 (1MHz) | ASTM D150 | |
| Comparative tracking index(CTI) | ≥ 600 V | IEC 60112 | |
| Dielectric loss factor | 0.01 - 0.02 (1MHz) | ASTM D150 |
Disclaimer: The performance figures, parameters, and features described are typical values under specific test conditions and may vary in actual applications. They do not constitute a warranty or guarantee of performance under all conditions. Users are responsible for verifying the suitability of the product for their intended application.
1.SMC insulation board is able to withstand temperature upto 155℃.
2.It has excellent electrical insulation and superior mechanical strength.
3.Its production efficiency is high while its cost is very low. The molding cycle is extremely short (a few minutes), making it suitable for mass production and cost-effective.
4.It is used in switch cabinets or distribution cabinets for arc extinguishing covers, insulating partitions, mechanism baffles, cable compartment supports, busbar clamps, circuit breaker housings, or dry-type transformer housings, clamps, and insulating sheaths.
